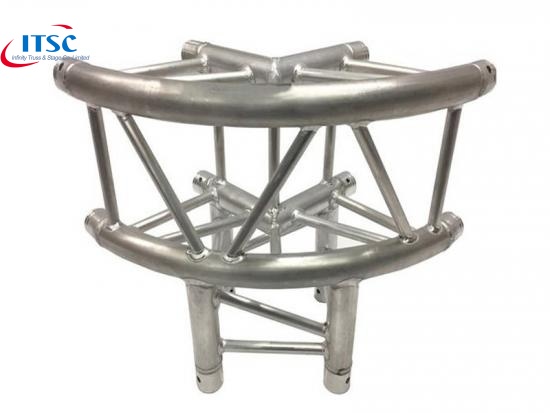

Apexi Down 3 Way Square Truss Corner:
This 3 Way Square Curved Truss Corner is one of the standard Curved Truss Corners for the ITSC-CS29. It offers optimum flexibility to complete your special truss structures requirements. Curved Truss Corners Displays on a lot of wedding parties.
Features:
- Light weight and quick to install.
- Modular and fotproof assembly.
- Powder coating or anodizing to be any color on request.
- Special design for architecture structure.
Specification:
| Item | 290x290mm 3 way curved box truss corner |
| Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
| Types | Square Truss corner |
| Main tubes | 50 x 3 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
|
Dimensions |
290 x 500 x 500mm |
| Selfweight | 6.7kg |
| Volume | 0.13m3 |
| HS code |
7610900000 |
