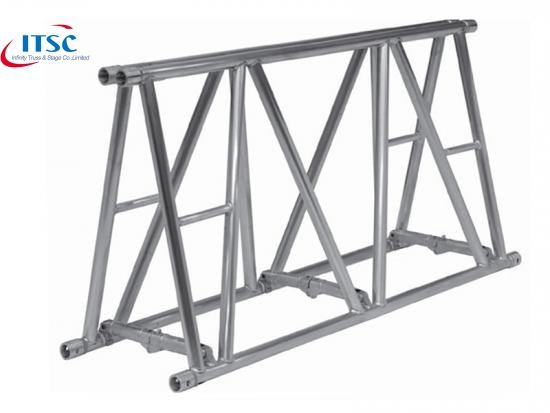

Heavy Duty Folding Truss Equipment Framing Kit For Sale:
This Folding Truss Framing is developed from ITSC-CSF58101 Foldiing Truss with more supported tubes to strengthen the capacity ability. It is adapted for construction in one level. it is specially designed for mobile event service. This truss offers higher load capacity and uses minimum space. By folding the truss, it is possible to transport it in a simple way.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding.
- Higher loading capacity compared with the standard ones.
Specification:
Item | 580x1010mm heavy duty folding truss kit |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50x 4 mm |
Sub-Main tube | 50 x 3 mm |
Braces | 30 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 16kg |
100 cm | 31 kg |
200 cm | 46kg |
300 cm | 60 kg |
Other length can be custom on request.
Application:
This Folding Truss Frame is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
