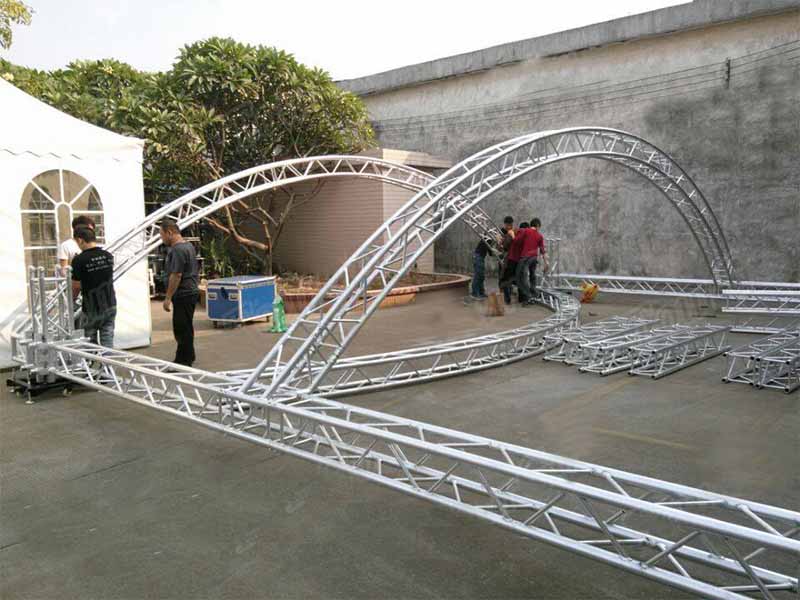

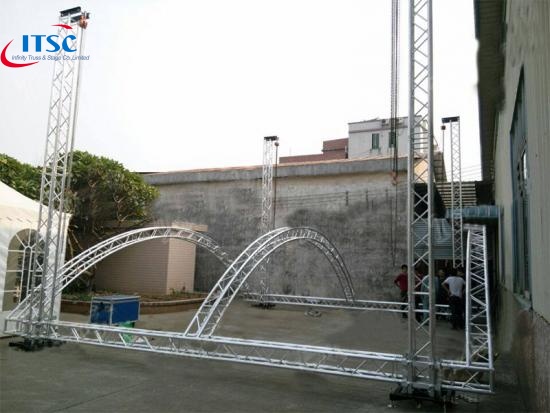

Outdoor Curved Roof Stage Equipment for Event Advertising:
This 32ft Stage Curved Roof Kit is a fixed tower-based structure with ITSC-CS39 Square Box Truss. Different demensions are customed by simply changing the arches. PVC Cover on the top and sizes are optional.
Features:
- Just install the system with your standard ITSC-CS39 straight and curved trusses in stock.
- Spigot connection offering your fast and easy install.
- Aluminium lightweight Stage Lighting truss portable for exhibitions and trade shows.
Specification:
Item | 32ft Aluminum Stage Curved Roof Shed |
Towers | 390x390mm spigot truss |
Main grid | 390x390mm lightweight Box truss and special angles |
Dimensions | 32ft W x 32ft D x 24ft H |
Loading capacity | 3500kg |
Total weight | 1390kg |
Transporation volume |
21m3 |
Max. wind speed | 25m/s |
HS code |
7610900000 |
Application:
- Product presentations.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitions and trade shows.
- Celebrations and parties.
- Conventions and large-scale meetings.
- Outdoor advertising for billboard, commecial, events, entertainment, ect.
