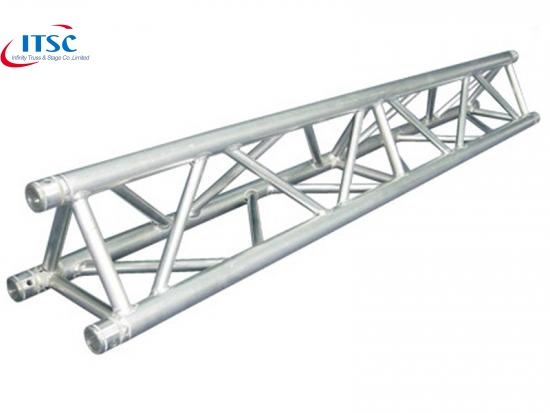

Buy 230mm Triangle Stage Truss Aluminium Structure from China:
This ITSC-CT23 is usually custom to be 3m length for different stage truss roof structures supporting exept the small events. It can be customized to be curved and circular on request. When combined with its related blocks and different corners, it can be installed to be all kinds of Architecture Structure for decoration and rexhibition booths.
Features:
- Mini truss designed and lightweight.
- lower volume to transport.
- And requirement free design available.
- Powder coating or anodizing to be any color on request.
- Factory price only.
Specification:
Item |
230x230mm spigoted triangular truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Dimensions | 230 x 230 mm |
Types | Triangular |
Main tubes | 50 x 2 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 3.2kg |
100 cm | 5.2 kg |
150 cm | 7.2 kg |
200 cm | 7.3 kg |
250 cm | 9.7 kg |
300 cm | 11.1 kg |
Other length can be custom on request.
Application:
This 230mm Triangle Stage Truss is commonly applied in Crank Up Triangular Lighting Truss System, architecture decoration structure, exhibition booths, gantry, ed.
Problems:
It will fail to install the Truss Ground Support due to its triangle shape.
