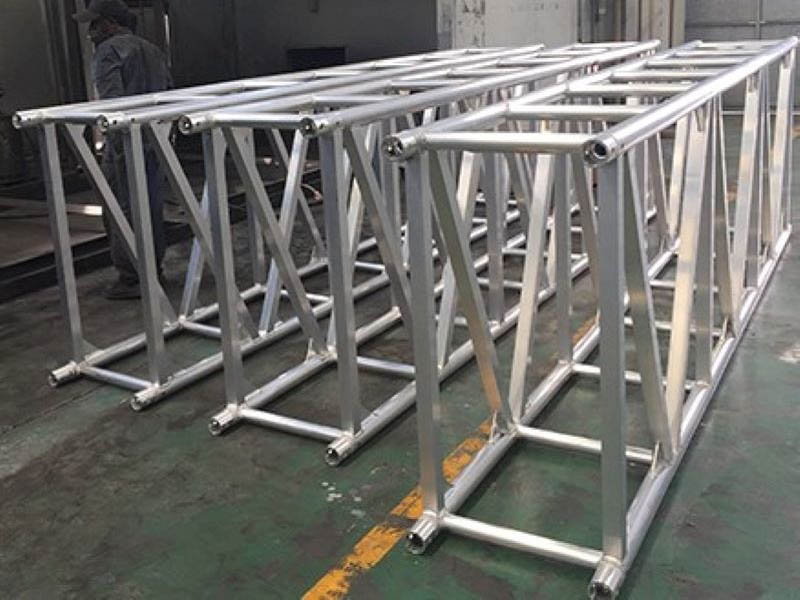

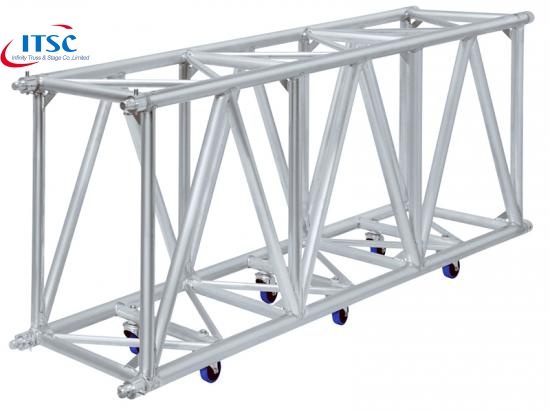

Heavy Duty Modular Entertainment Truss Rigging Beam:
This ITSC-CS58101H Heavy Duty Event Truss is constructed of main tube 60x6mm, sub-main tubes 50x3mm, and bracing 30x3mm. Equiped with heav duty conical coupler system, it can be extended to be 40m span with Uniformly Distributed Load 40.7kg/m, and Centre Point Load 750 kgs.
Feature:
- Custom-made pieces can be created on request.
- Large span with can heavy duty capacity for big events.
- TUV & SGS certificate.
- Conical coupler system for quick and easy installation.
Specification:
Item | 580x1010mm heavy duty rectangular box truss for big events or projects |
Material | 6082-T6 |
Main tube | 60x6mm |
Sub - main tube | 50x3mm |
Bracing | 30x3mm |
This Heavy Truss can be also powder coated to be black on request.
Length and Weight:
0.6m | 18kg |
1.0m | 25kg |
1.5m | 32kg |
2.0m | 39kg |
2.5m | 46kg |
3.0m | 53kg |
