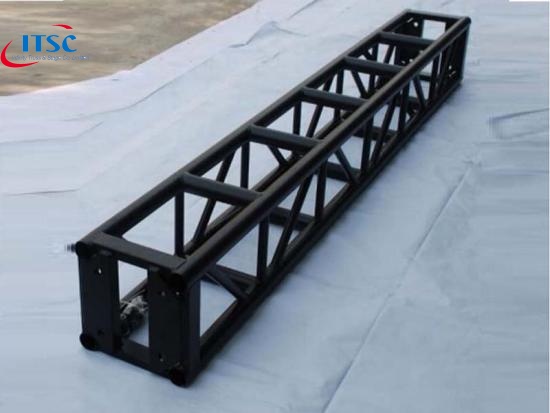

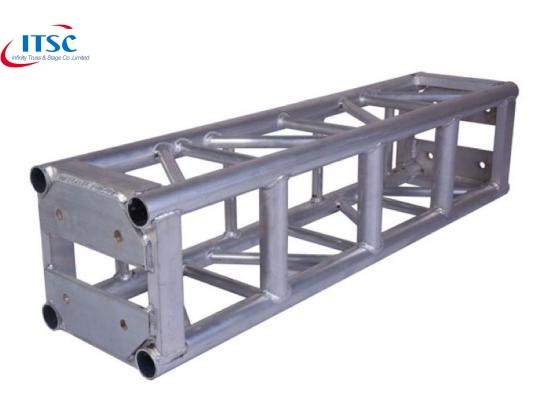

China Heavy Duty Aluminium 12x12 Box Truss Bolted for Gable Roof:
12x12 box bolted truss is constructed with 2" OD x 1/8" for both main tubes and sub-main tubes, and diagonals are 1" OD x 1/8", and it is plated end is connected with bolt and nuts.
Its standard lengths can are usually 1.65', 3.28', 4.92', 6.56', 8.20', 10' ect. Other special length can be custom on request as well.
It is usualy equipped with other box truss corners to construct a whole Box Truss Kits.
Features:
- 4- point nodding and custom heavier duty capacity with sub-main tubes.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 12x12 heavy duty box bolted truss for gable roof |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes and sub-main tubes | 2" OD x 1/8 |
Braces | 1" OD x 1/8" |
Connection type | Plated with Bolt |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
1.65' | 5.68 kg |
3.28' | 9.25 kg |
4.92' | 12.82 kg |
6.56' | 16.40kg |
8.20' | 19.97 kg |
10' | 23.30 kg |
Other length can be custom on request.
Application:
This 12 x12 box truss system is widely used for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
