Musical Outdoor Graphical Stage Roof Korea Truss Kit :

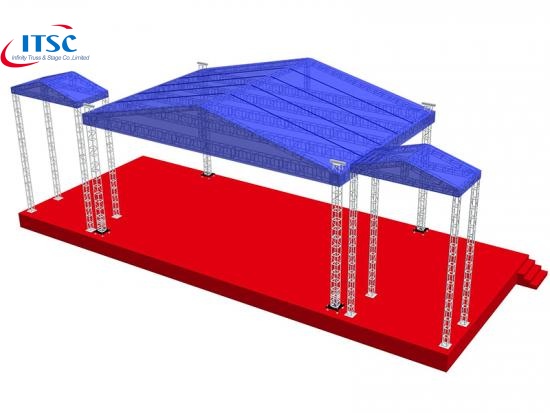

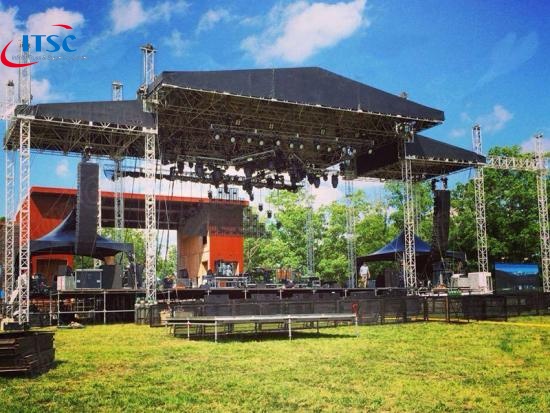

This Graphical Stage Roof Rigging is constructed with main stages 45x45ft and additional two sided rooftop with 13x13ft. The whole main rigging beam is constructed with ITSC-CS52, and its pillars are fabricated with standard ITSC-CS39 by ITSCtruss in stock.
With the soundwings, you can hang the line array freely; With the backdrop truss system, you can install your LED screens happily.
Features:
- Just install the system with your standard ITSC-CS52 and ITSC-CS39 in stock.
- Conical cuppler systems for quick installation.
- Featuring with stage systems as ballast system and the box truss systems under the roof to hang more lighting.
Specification:
Item | 45ft Graphical Stage Roof System |
Towers | 390x390mm pin truss |
Main grid | 520x520mm box truss |
Dimensions for the truss system | 45x45x30ft |
Loading capacity for the truss system | Approx. 11400kg (Including the soundwings capacity) |
Total weight for the truss system | Approx.2850kg |
Transporation volume for truss system |
Approx. 45m3 |
Max. wind speed for the truss system | Approx. 28.4m/s |
Application:
- Theatre shows.
- musicals and operas.
- festivals and fairgrounds.
- Exhibitioins and trade shows.
- Celebrations.
- Parties.
- Conventions.
- larg-scale meetings.
- Studios.
- Churches.
- Wedding.
- Sport clubs.
- DJ events.
- Roadshows.
- Concerts.
- TV.
