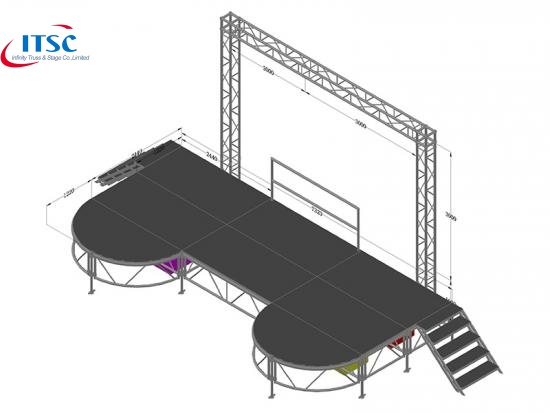

Custom Outdoor Concert Stage System with backdrops:
This concert stage system is setup with 6 pcs 4x8ft portable stages, 2 pcs semi circle stage decks, 2 stairs and lighting truss backdrops.
Features:
- Interconnected framework acting as ballast systems for trusses roof.
- It can absorb the horizontal forces resulting from wind forces on the roof.
- Easy setup without any tools.
- Maximum load 750kg/m2 and 10% horizontal load are available.
Specification:
Item | Custom concert stage system with backdrop |
Stage decks | 4x8ft aluminium portable stages |
Topping | 18mm thick birch tree fiber plywood board covered with a smooth anti-humidity phenolic resin layer, water proof and anti-slip |
Backrop | Available |
Selfweight | Approx.590kg |
Transportation volume | Approx.5m3 |
Capacity | Approx. 750kg/m2 |
HS code |
7610900000 |
The stage system can be also custom to be black colour on request.
Easy setup without any tools.

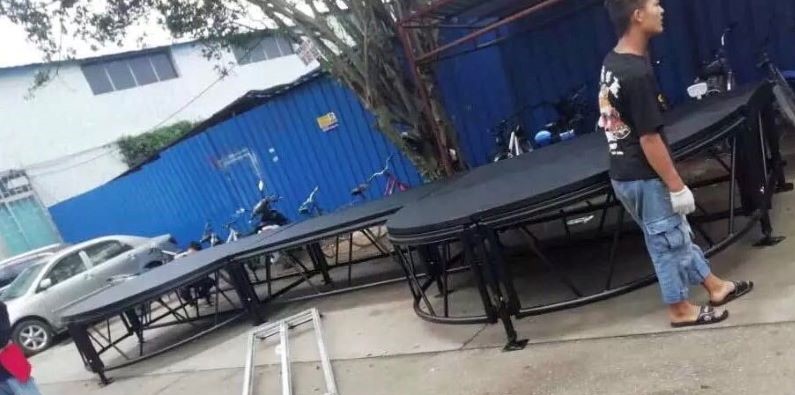

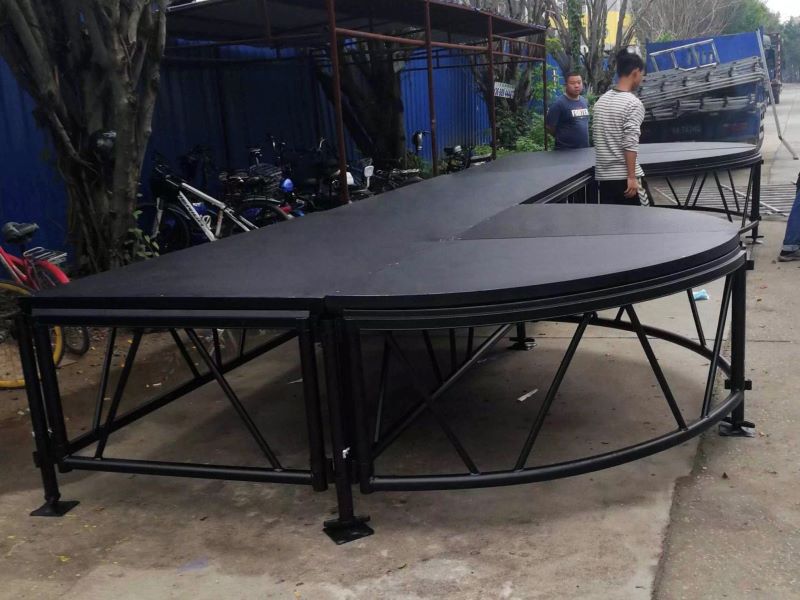

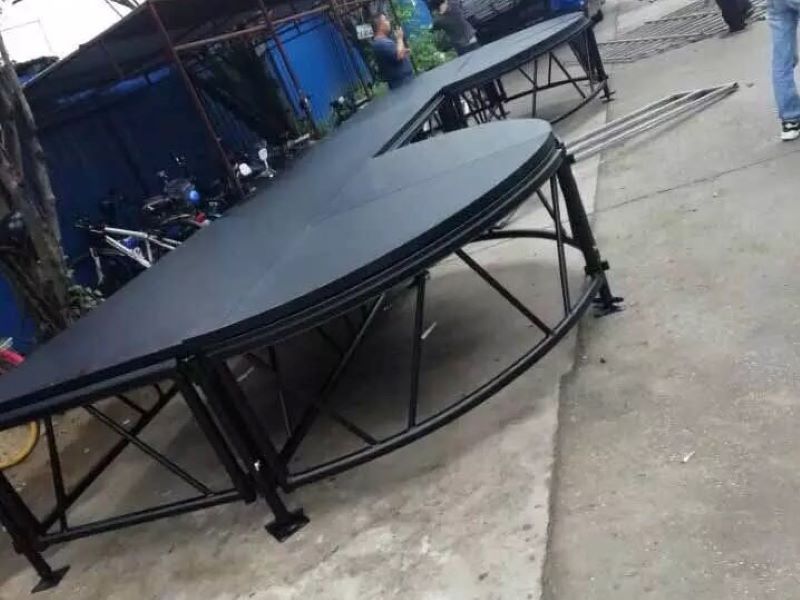

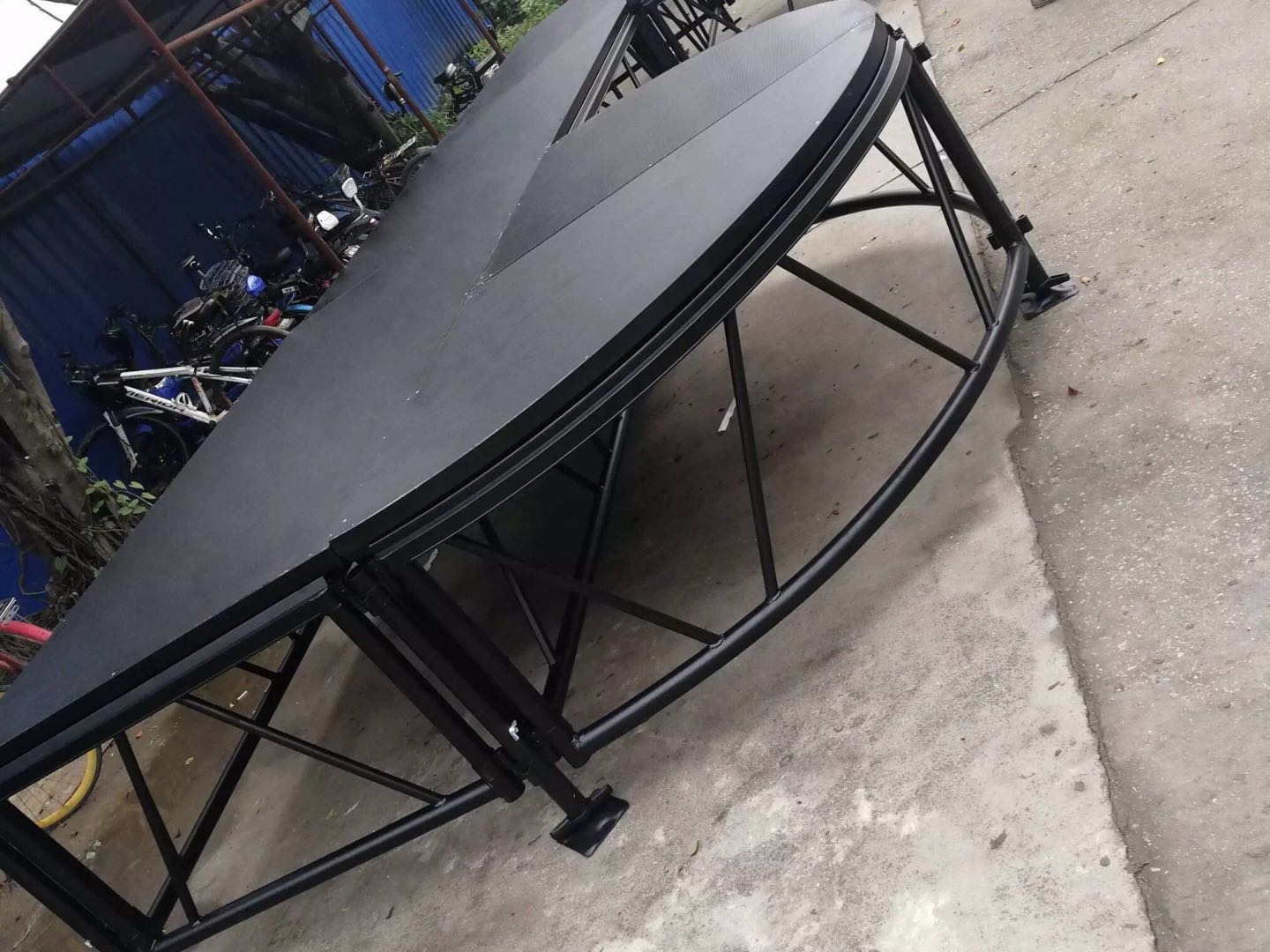

Halfdone setup for outdoor events.

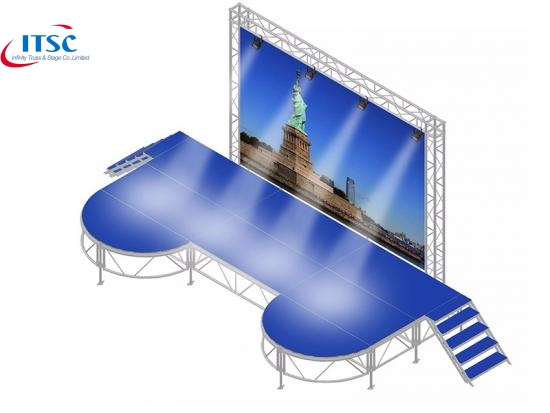

Stage system effect.
