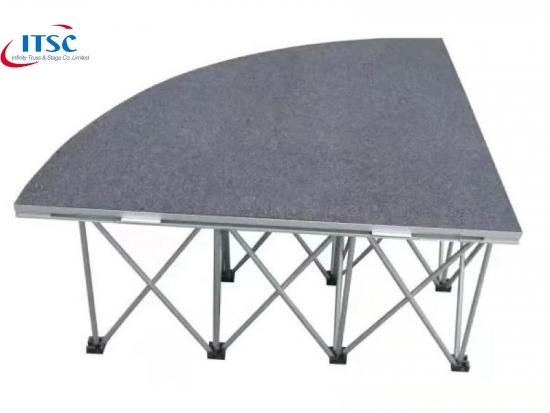

Aluminium Custom Corner Portable Stage Deck System:
This Theatre Corner Stage System is supported by webbing aluminum frame and 18mm birch tree fiber plywood board covered with a smooth phenolicresin anti-humidity waterproof topping. The height can not be adjustable. Heighth can be custom to be 20cm, 40cm, 60cm, 1m. Other special dimentions can be aldo customized.
Features:
- Waterproof and anti-slip for outdoor and indoor concert events.
- Aluminum frame and lightweight for mobile use.
- DIY fast assembling, no any tools.
- Interconnected framework acting as ballast systems for truss roof constructions.
- Factory price only.
Specification:
| Item | Custom small portable Stage Corner System |
| Material | Aluminum Alloy 6061-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Stage Topping | 18 mm birch tree fiber plywood board covered with a smooth phenolic resin anti-humidity layer, anti-slip, waterproof |
| Self-weight | 35 kg /pcs |
|
Volume |
2 m3/set |
| Capacity |
500kg /m2 |
How to set up the ready made stages?
- Put the aluminium frame stand straight on the floor ;
- Open the frame slowly and adjust it to be even;
- Put the stage decks on the top of the frame;
- Lay the stairs on the right side of the stage system on request.
