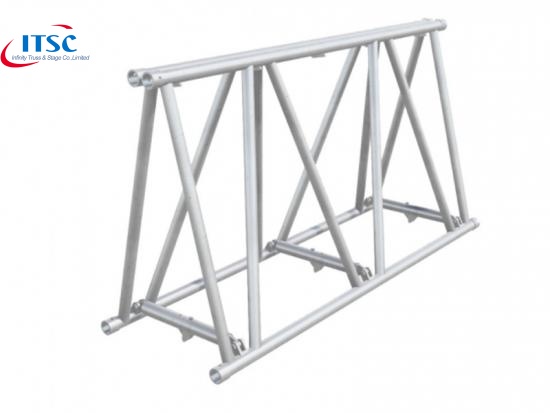

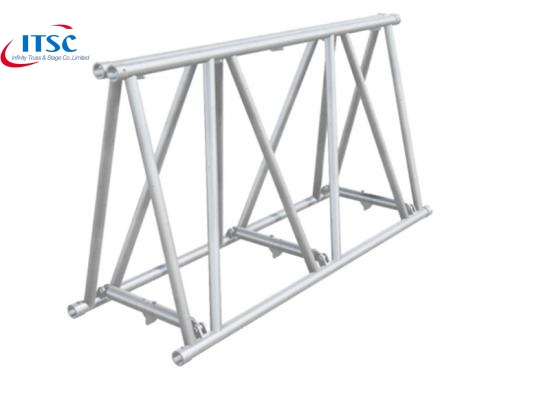

Aluminum Collapsible Folding Light Truss 580 x1010mm:
This Aluminium folding truss is adapted for construction in one level. it is specially designed for mobile event service. This truss offers high load capacity and uses minimum space. By folding the truss, it is possible to transport it in a simple way.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding.
- High loading capacity.
Specification:
Item | 580x1010mm collapsible folding truss system |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50 x 4 mm |
Sub-Main tube | 50 x 3 mm |
Braces | 30 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 15 kg |
100 cm | 29 kg |
200 cm | 43kg |
300 cm | 56 kg |
Other length can be custom on request.
Application:
This Collapsible Folding Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
