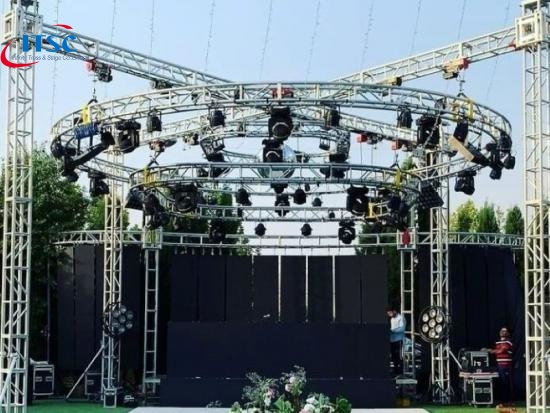

Circular Aluminium Stage Truss Roof Uplift System:
This is Circular Truss Roof is constructed mainly with 4 Towers and another goalpost as backdrop. Besides, it is equiped with 2 circular truss kits under the flat roof which is used to hang more lighting fixtures.
Features:
- 25ft dia Medium duty truss structure.
- Fabricated in China with TUV and SGS certificates.
- Circular Truss Segments can be constructed as many shapes as you can image it.
- Manufactured with a high degree of accuracy ensuring a perfect fit without any disortion.
- Semi-automated welding jigs used for production to ensure that all parts are identical.
- Every segment of a circular truss can be mounted at any position.
- DIY easy setup.
Specification:
Item | 25ft dia circulars box truss roof system |
Main rigging | 290x290mm box truss |
Towers | 4xtowers |
Big circular truss dia. | 25ft |
Small circular truss dia. | 16ft |
Self weight | Approx.1340kg |
Transportation volume | Approx.10m3 |
Capacity | 7200kg |
Max Wind speed | 28m/s |
HS code |
7610900000 |
