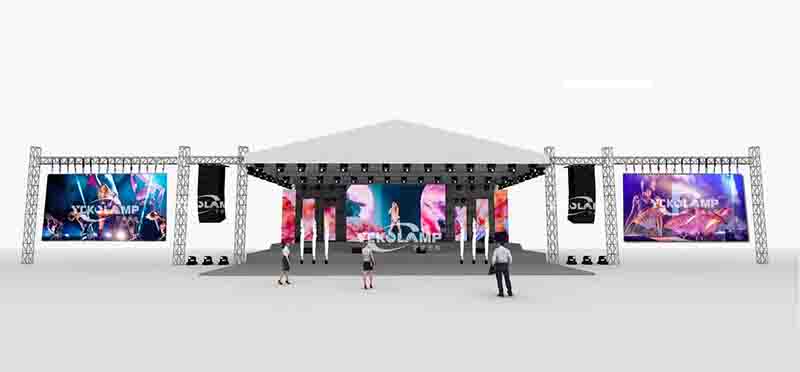

Heavy Duty 40x40ft Best Truss Stage Platform Kit Structure for Europe:
This Heavy Duty Truss Platform Kit is widely used for outdoor event stage cover. It is constructed with ITSC-BS52 bolted box truss for the beams and ITSC-BS40 for the pillars.
Features:
- TUV & SGS certificates.
- Quick and easy for installation.
- Mobile for any indoor and outdoor events.
- Anti-crossive and durable for rental business.
Specification:
Item | 40x40ft heavy duty stage truss plaform pyramid roof |
Main rigging | ITSC-BS52 |
Towers | 10 Sets |
Connection | Bolted connecting |
Truss roof dimensions | 12x12x9m (40x40x30ft) |
Truss Selfweight | Appr.6450 |
Transportation Volume | 79m3 |
Truss Roof Loading capacity | Approx.22000lbs (9900kg) |
Max windspeed | 27m/s |
