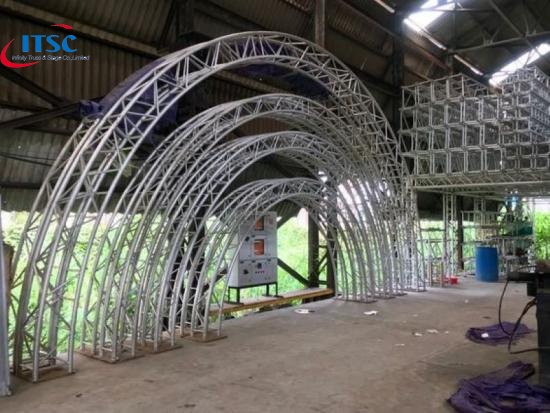

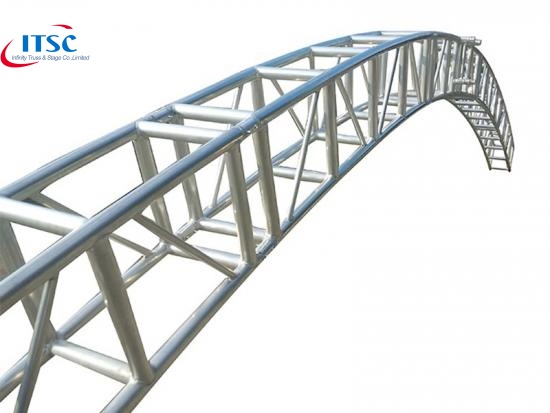

Line Array Medium Duty Curved Box Bolted Truss:
This Curved Box Truss Component is developed from ITSC-BS40 Box Truss, and it is constructed with main tubes 50x3mm, sub-main tube 50x2mm and diagonals are 25x2mm. It is usualy equipped with other box truss corners to construct a whole circular box truss or Curved roof system.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 400mm Curved Box Bolt Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Curved |
Main tubes | 50x3mm |
Sub-main tubes | 50x2mm |
Braces | 25x2mm |
Connection type | Bolted |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 9.7 kg |
100 cm | 13.5 kg |
150 cm | 17.15 kg |
200 cm | 20.70 kg |
250 cm | 24.35kg |
300 cm | 28 kg |
Application:
This Line Array Curved Box Truss is widely used in UK for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
