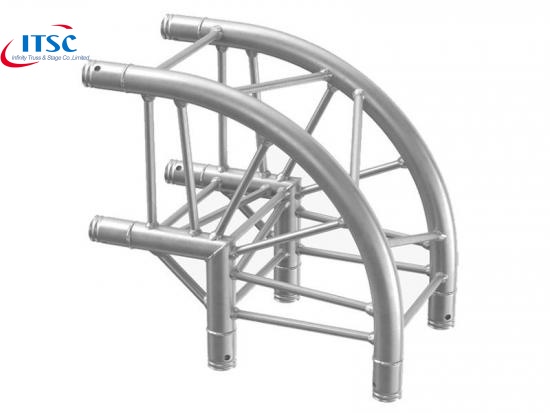

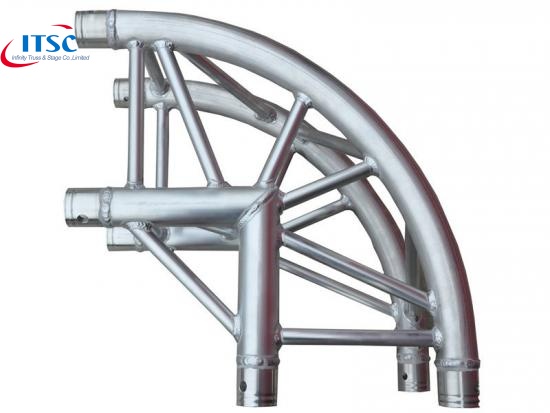

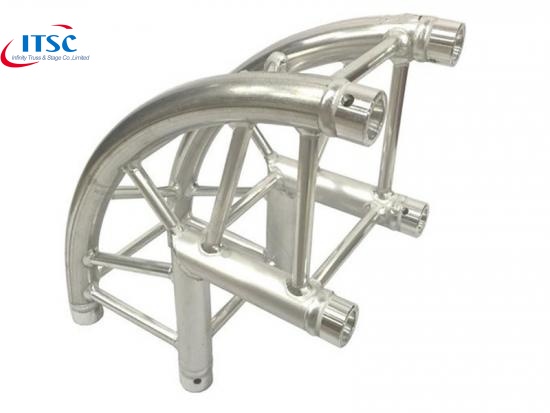

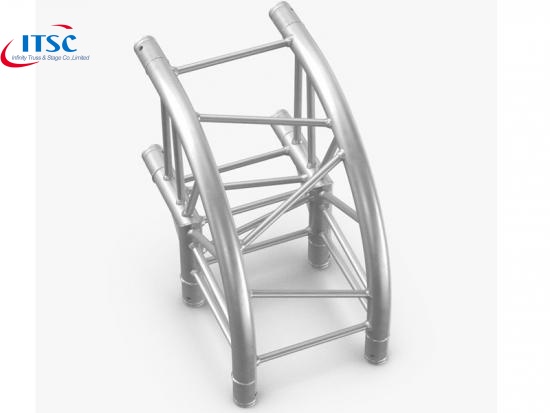

2 Way Curved Square Truss Corner 90 degrees:
This 2 Way Square Curved Truss Corner is one of the standard Corner Trusses for the ITSC-CS29. It offers optimum flexibility to complete your special truss structures requirements. Its Curved Angle offers your architecture featurs for truss displays.
Features:
- Lght weight and quick to install.
- Modular and fotproof assembly.
- Powder coating or anodizing to be any color on request.
- Special design for architecture structure.
Specification:
Item | 290x290mm 2 way curved box truss corner |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Curved Square Truss Corner |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
Dimensions |
290x500x500mm |
Selfweight | 6kg |
Transporation volume | 0.0.08m3 |
HS code |
7610900000 |
