12 Inch Aluminum Material Box Truss Kit Price for Sale:
How much does this 12 Box Truss Cost ? USD50/m!
Buy Aluminium Grid Box Truss from ITSCtruss factory and you will get the reasonable price.

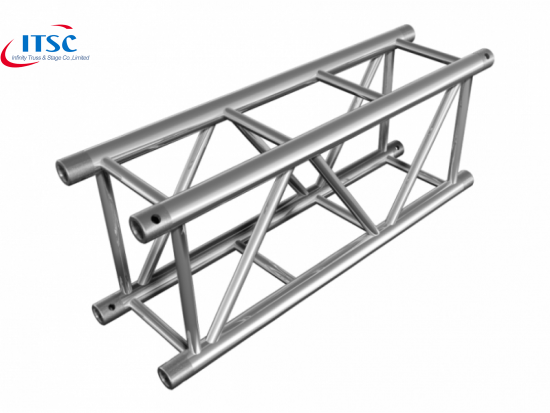

This 12x12 inches box trus is configurated with main tube 1.96‘ OD and 0.118" thick, and sub-main tubes 1.18" OD x 0.07" thick withbracing 0.96" OD x 0.07" thick.
It offers an optimum lifting Capacity Centre Point Load 550kg at 10m Span and indicates the practical versatile in all kinds Grid Box Truss Bridge Kits for concerts stages, exhibitions, tents, events, and other complex structures like displays or booths
It is hotsale around the world, including Europe, Japan, Queensland, Canada, India, Japan, Victorica, UK, London, Mumbai, Nigeria, Lagos, US Vietnam.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
- Global standard size and most widely used in performance.
- Conical coupler connection which is quick to install.
Specification:
Item | 12 box truss line array |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes |
1.96‘ OD and 0.118" thick |
Sub-Main tube | 1.18" OD x 0.07" thick |
Braces | 0.96" OD x 0.07" thick |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 5.35 kg |
100 cm | 8.45 kg |
150 cm | 11.55 kg |
200 cm | 14.65 kg |
250 cm | 17.85 kg |
300 cm | 21.3 kg |
Other length can be custom on request.
Application:

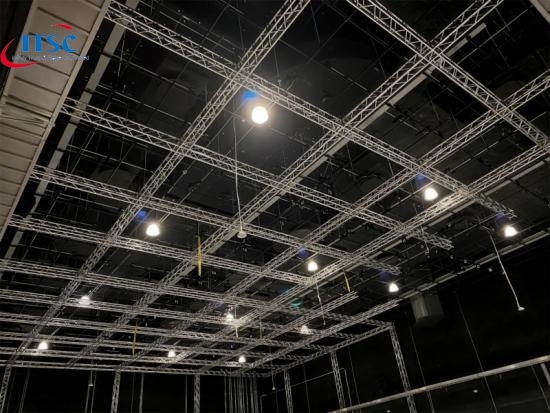

The 12 Inch Spigoted Box Truss is widely used forconcert stagehire, decorations, car shows, exhibitions booths, churches, world cup events, studio, grid, stage rigging lighting, ect.
