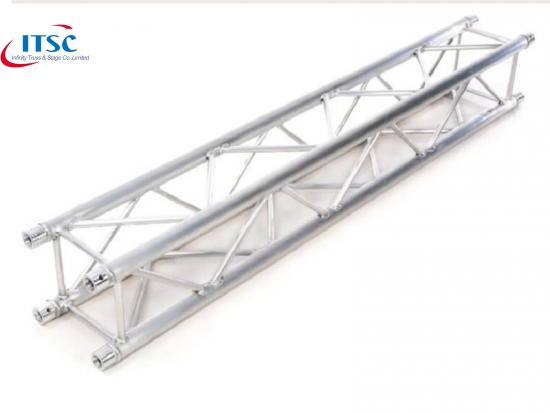

8x8 Inch Aluminio Mini Grid Box Truss Beam :
This Grid Box Truss Beam is made of main tube 1.18"x0.07" and brace 0.79"x0.07" equipped with spigot pins for free. Its Centre Point Load is 228kg at 6m span. It is designed for high-frequency usage and installation that require good loading and durable solutions for perfect Djs, live outdoor or indoor events projects, exhibition booths, touring, nightclubs and other performance setup,ect. It is ideal for hire and event planning companies.
Features:
- Every pics is no more than 9kg (20lbs).
- Loading capacity 228kg ( 500 lbs) at 6m span.
- Equiped with conical cupler system which is very easy to instal.
- Modular and flexible use in DJs, medias, event stages,ect.
Package Contents:
- All lengths of Grid Box Truss Kits required
- Sets of conical coupler and pins and R clips demaned for the required Grid Box Truss Structures
Specification:
Item name | 8x8 Inch Small Box Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 1.18"x0.07" |
Braces | 0.79"x0.07" |
Connection type | conical cupler connection |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 2.15 kg |
100 cm | 3.25 kg |
150 cm | 5.55 kg |
200 cm | 6.2kg |
250 cm | 7.55 kg |
300 cm | 9.5 kg |
Other length can be custom on request.
Application:

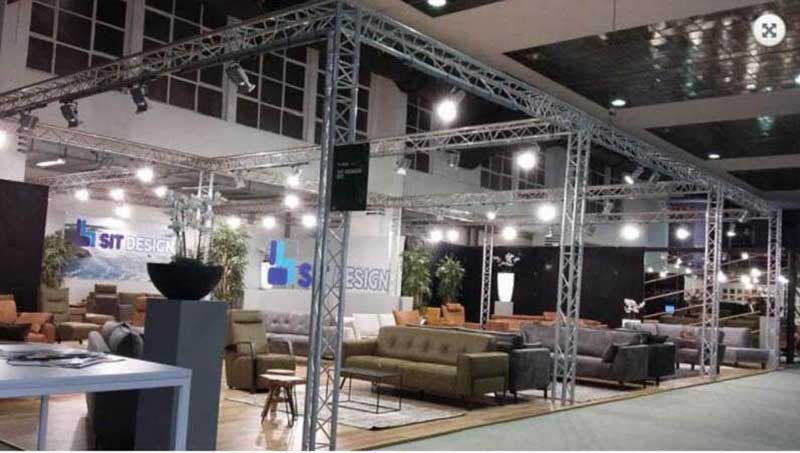

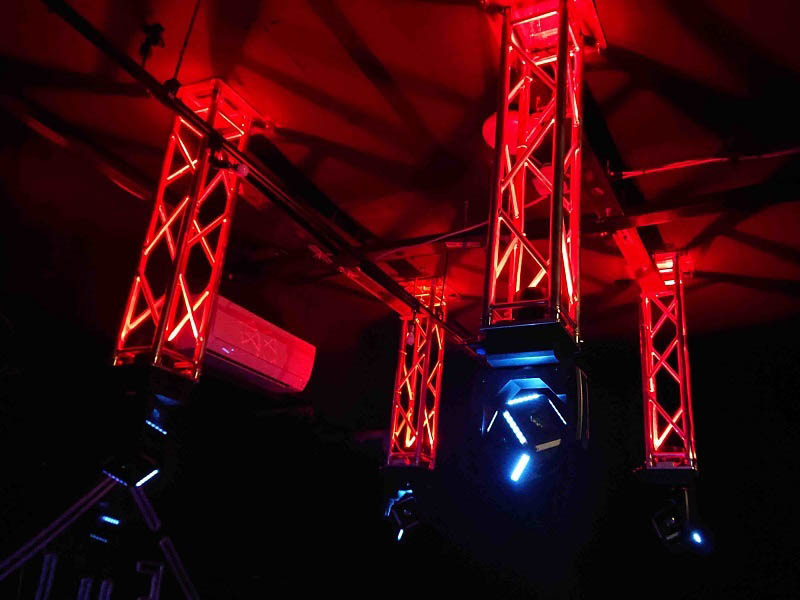

The Grid Box Truss Light Duty is compative in shape and easy to install, lightweight and portable, very durable for small events like DJ booths, exhibition booths, night clubes,ect.
