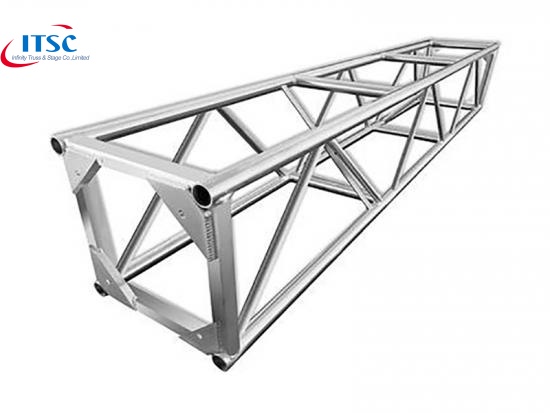

350mm Outdoor Stage Box Lighting Truss for Moving Heads:
ITSC-BSB35 Box Bolted Truss is configurated with main tube 50x3mm sub-main tube 50x2mm, and and bracing 25x2mm. It offers an optimum lifting Capacity Centre Point Load 550kg at 14m Span and indicates the practical versatile in all kinds box beam truss structurefor concerts stages, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
- Global standard size and most widely used in performance.
- Bolted plated connection for cheaper price.
Specification:
Item | 350x350mm plated bolted box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 50 x 3 mm |
Sub-Main tube | 50 x 2 mm |
Braces | 25 x 2 mm |
Connection type | Plated bolt |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 5.65 kg |
100 cm | 9.05 kg |
150 cm | 12.45 kg |
200 cm | 15.85 kg |
250 cm | 19.25 kg |
300 cm | 22.8 kg |
Other length can be custom on request.
Application:
This outdoor box lighting truss is widely used for concert stagehire, decorations, car shows, exhibitions booths, churches, world cup events, studio, grid, stage rigging lighting, stage rooftop, ect.
