Buy 20x12m Global Stage Truss Triangle Roof System For Sale:

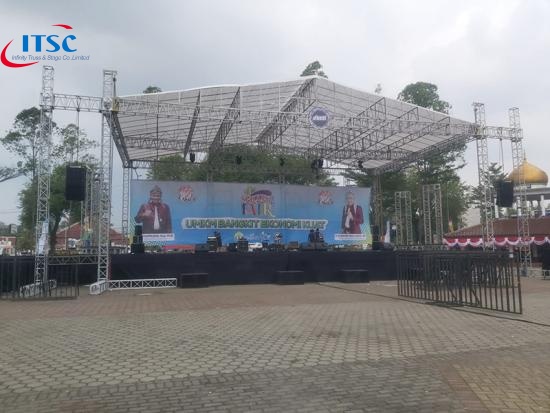

This Stage Lighting Truss Design is constructed to be 20m W x 12m D. It is tower-based structure with a Triangular Pyramid Roof, and its beam truss is ITSC-BS52 that offers heavy ducty capacity and safety. It can be also extended to as large dimensions as to be 30x20m just with bigger Heavy Duty Truss Equipment.
Features:
- Heavy duty truss rigging equipment for large outdoor concerts.
- TUV and SGS certificates approved.
- Bolted plateds connection is cheaper in price.
- Strengthened sided truss system structure to support.
Specification:
Items | 20m x 12m stage lighting truss roof system |
Towers | 6 x towers |
Main rigging | 520x520mm bolted truss |
Dimensions | 20m x 12m/ 20mm x 14m( The bigger, the more it costs) |
Self-weight | Approx.7600kg( only for truss roof) |
Transportation volume | Approx. 135m3 |
Loading capcity | Approx. 7800kg |
Max. wind speed | 27.5m/s |
Application:
- Outdoor concerts in gym.
- Performances events.
- Temperary sheltered workshops.
- Festival activities.
