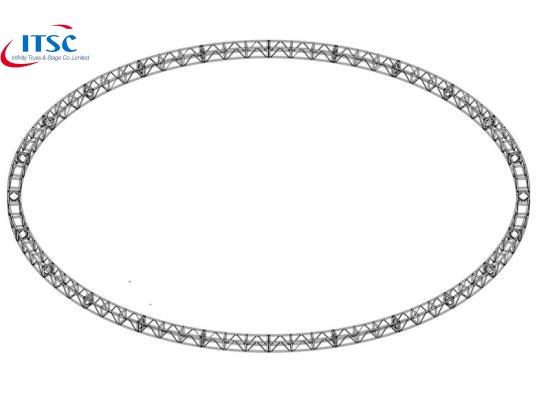

DIY Aluminium Circular Box Truss Structure Column :

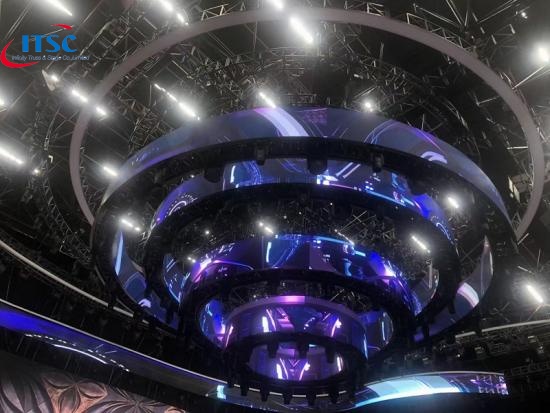

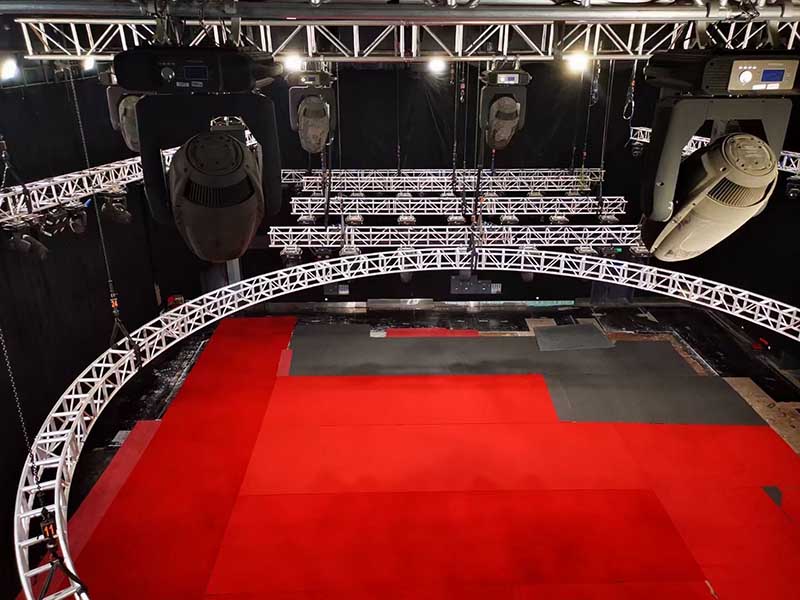

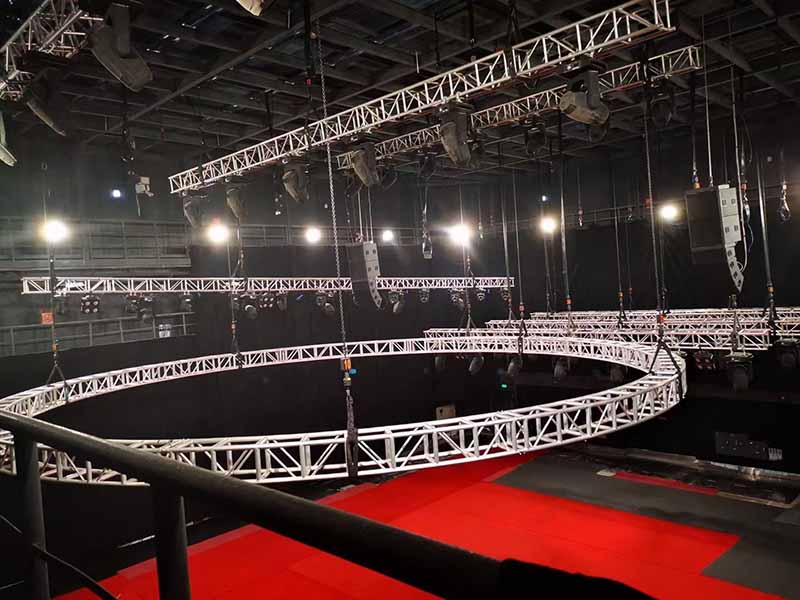

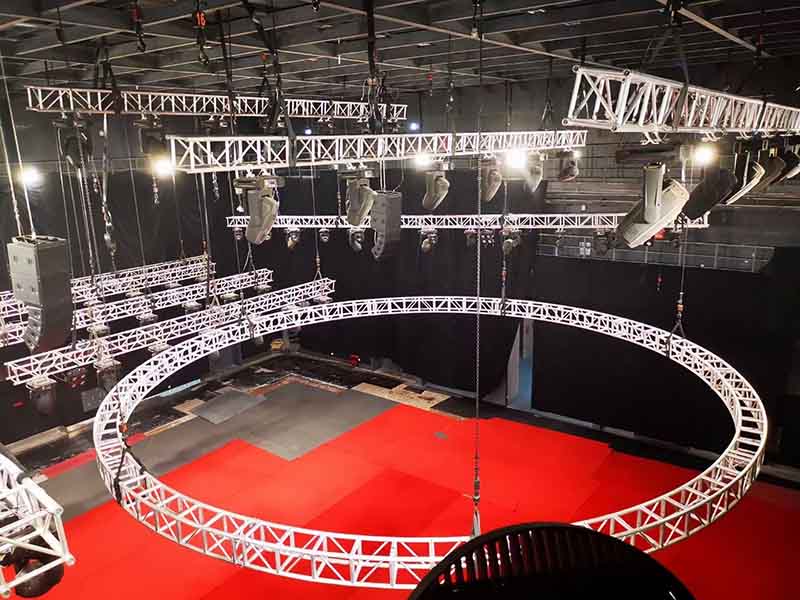

This DIY Circular Box Truss is configurated with ITSC-BS30 bolted box truss, and its main tube 50x3mm, and bracing 25x2mm. It is widely used overhead to install under the ceiling for concert stages.
Features:
- Any diameters circular trusses can be custom.
- Different diameter circle trusses and equiped together to form different shapes and effects.
- TUV and SGS certificates.
- Powder coated black and other colour can be custom.
Specification:
Item | 20m Dia circular box truss bolted |
Dia | 20m |
Main tube | 50x3mm |
Bracing | 25x2mm |
Selfweight | 400kg |
Transportation volume | 8m3 |
Parts | 32parts x 1.98m |
HS code |
7610900000 |
