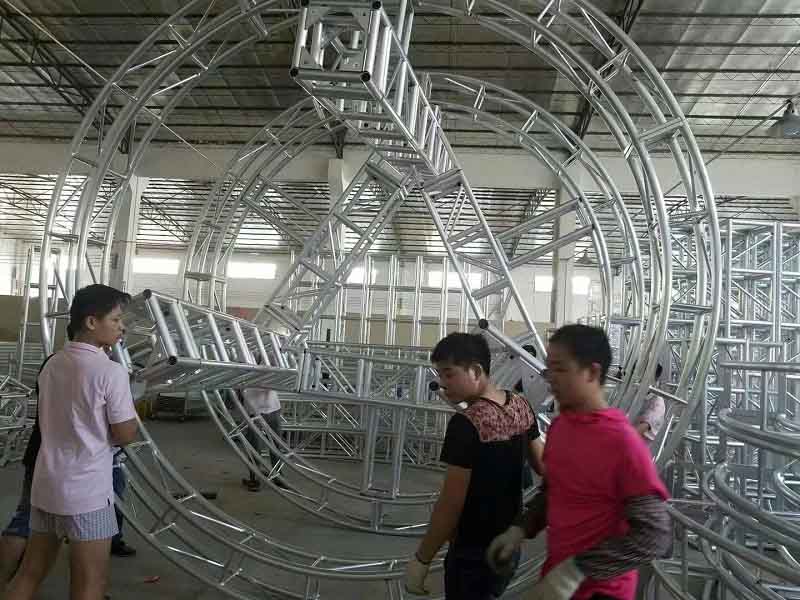

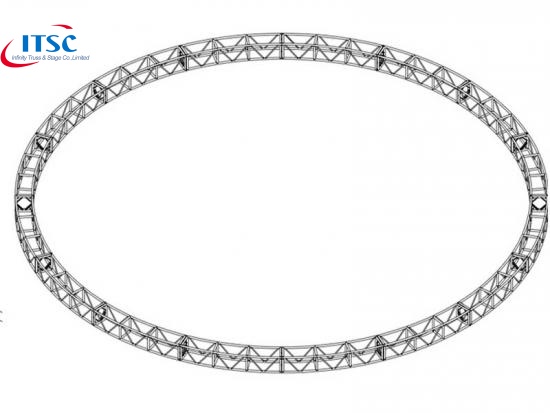

12m Aluminium Circular Stage Lights Box Truss Beam System:

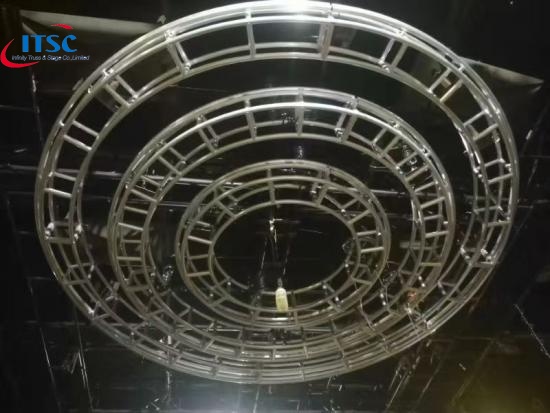

This Circular Box Truss Beam is configurated with ITSC-BS30 bolted box truss, and its main tube 50x2mm, and bracing 25x2mm. It is widely used overhead to install under the ceiling for concert stages.
Features:
- Any diameters circular trusses can be custom
- Different diameter circle trusses and equiped together to form different shapes and effects
- TUV and SGS certificates
- Powder coated black and other colour can be custom
Specification:
Item | 12m aluminum circular truss with 300x300mm bolted box truss |
Dia | 12m |
Main tube | 50x2mm |
Bracing | 25x2mm |
Selfweight | 240kg |
Transportation volume | 5m3 |
Parts | 4parts x 3m |
HS code |
7610900000 |
Capacity |
3 Suspenion Points: UDL 29kg/m; CLP 251kg |
4 Suspenion Points: UDL 56kg/m; CLP 291kg |
|
6 Suspenion Points: UDL 86kg/m; CLP 623kg |
|
8 Suspenion Points: UDL 203kg/m; CLP 812kg |
|
10 Suspenion Points: UDL 290kg/m; CLP 923kg |
