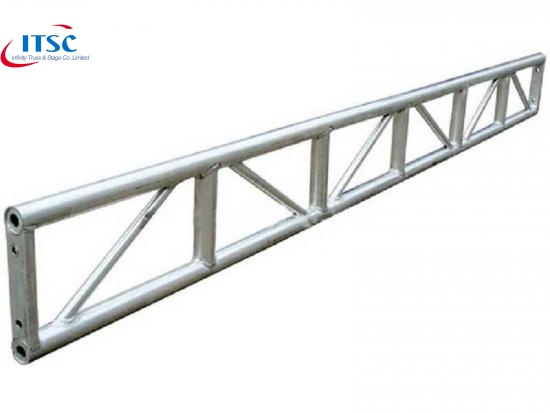

10 Inch Aluminium Small Ladder Truss Beam for Sale:
This Aluminium truss beam is made from aluminum alloy and it is most Lightweight as I beam. With conical couple system it is very easy to install. It can be assembled in vertical or horizontal position . It can be straight, curved and circular and usually adapted for truss to truss connection.
Features:
- Quick and easy to install.
- Modular and versatile for roof reinforcement and hire.
- Powder coating or anodizing to be any color on request.
- Free design by us.
- Lightweight for ladder framing between trusses or ending truss ladder construction.
Specification:
Item | 10 inch small I beam ladder truss |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Ladder |
Dimension | 50x250mm |
Main tubes | 50 x 3 mm |
Braces | 50 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 1.4 kg |
100 cm | 2.7 kg |
150 cm | 4.25 kg |
200 cm | 4.8 kg |
250 cm | 5.5 kg |
300 cm | 8.2 kg |
Other length can be custom on request.
