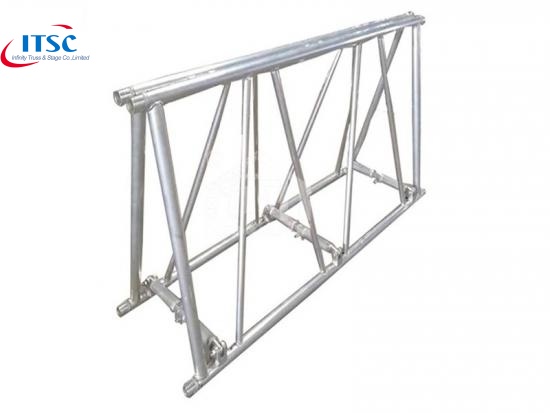

600x760mm Aluminium Material Alloy Concert Stage Folding Truss System:
This Aluminium Folding Truss is adapted for concert stage equipment. Its main tube is 50x4mm, and sub-main tube is 50x3mm. It is heavy duty with its UDL66kg at 24m span.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding.
- High loading capacity.
Specification:
Item | 600x760mm aluminum custom folding truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50 x 4 mm |
Sub-Main tube | 50 x 3 mm |
Braces | 30 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
60 cm | 13 kg |
80 cm | 17 kg |
160 cm | 29 kg |
250 cm | 36.50 kg |
320 cm | 44 kg |
Other length can be custom on request.
Application:
This Concert Stage Folding Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
