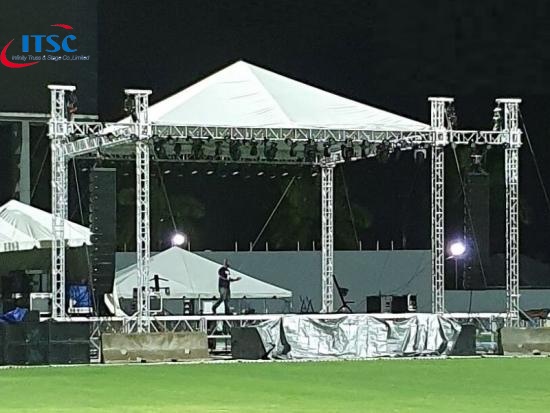

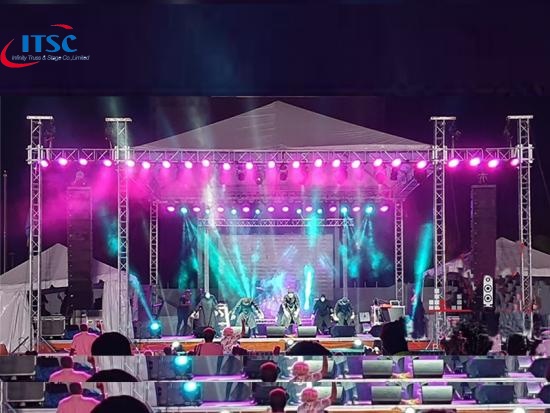

Hamas People are very fansinated by this Mobile Stage and Rooftop supplied by Infinity Truss & Stage Co., Limited. It features 28'x24' Event Stages and 32'x28' Aluminium Truss Beam Box . This medium dimensions of Mobile Covered Stage is portable and easy to set up.
Features:
- Flexible in size.
- Quick installation with connical coupler connection system.
- TUV & SGS certificates.
- Hold approx.300 people on it.
Specification:
Items |
32x28ft Outdoor Stage Roof Cover |
Main rigging | ITSC-CS39 |
Towers | 6 Sets |
Connection | Connical and coupler |
Truss roof dimensions | 32x28ft |
Stage platforms dimensions | 28'x24' with 4x4ft stage platform |
Truss Selfweight | Approx.2167kg |
Stage selfweight |
2100kg |
Transportation | 25 m3 |
Truss Roof Loading capacity | Approx.3586kg |
Stage System loading capacity |
Approx. 750kg/m2 |
Max windspeed | 28m/s |
