Graphical Stage Roof Truss Plafroms Panels For Sale :

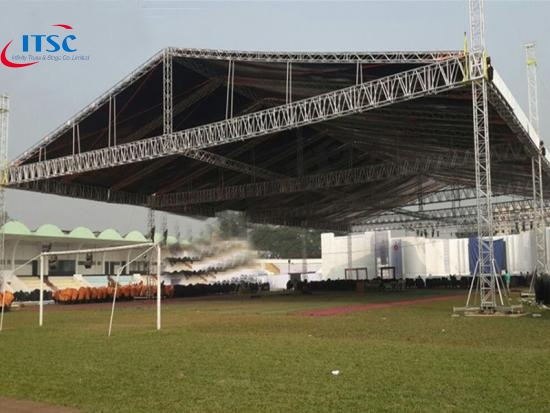

This Stage Roof Truss System is extended from Box Truss 24x24m, and equiped with stage canopy rooftop. It is standard packages. It is modular and versatile. It is quick and easy to assemble, saving building time and labour cost.
Features:
- Just install the system with your standard ITSC-CS6076 rectangular box truss and ITSC-CS50P box truss in stock.
- Spigot connection make your installation much easier and quicker.
- Coating power to be black is available.
- Cheaper price compared with curved roof and dome roof.
- TUV and SGS certificates.
Specification:
Item | 24m heavy duty raphical stage roof |
Towers | 500x500mm Spigot box truss |
Main grid | 600x760mm Heavy duty truss |
Dimensions | 24x24x10m |
Loading capacity | 7270kg |
Total weight | 3770kg |
Transporation volume |
83m3 |
Max. wind speed | 28m/s |
Application:
- Product presentations.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitioins and trade shows.
- Celebrations and parties.
- Conventions and larg-scale meetings.
- Event management or wedding parties.
