DIY Box Trusses Section Kits For Sale Craigslist ;

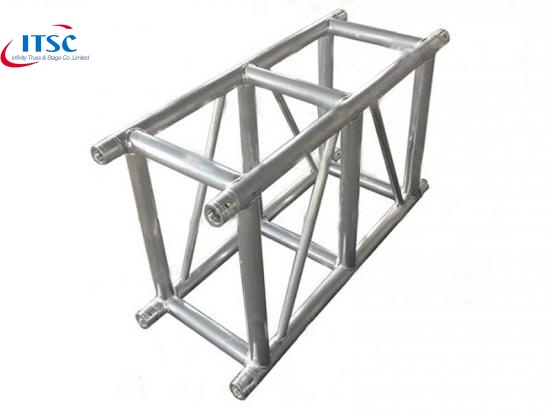

This 20 Box Truss is custom-made from the standard Box Secton Truss ITSC-CS52. It features with main tubes 50x3mm, submain tube 50x2mm and bracing 30x2mm. It is strengthened to be stage roof beams to offer heavier horizontal forces from the stuff hung on it.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Conical coupler system for easy installation.
Specification:
Item | 20 box trusses kits for a shed |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 50 x 3 mm |
Sub-main tube | 50x2mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 5.15 kg |
100 cm | 8.80 kg |
150 cm | 12.45 kg |
200 cm | 17.1 kg |
250 cm | 21.27 kg |
300 cm | 24.40 kg |
Other length can be custom on request.
Application:

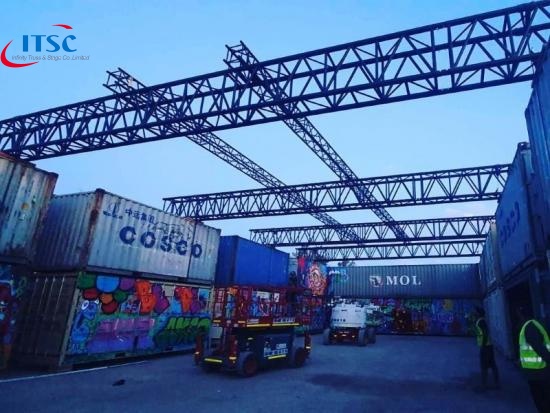

This Box Trusses Kits are widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
