Medium Duty Lighting Folding truss 400x600mm Outdoor:

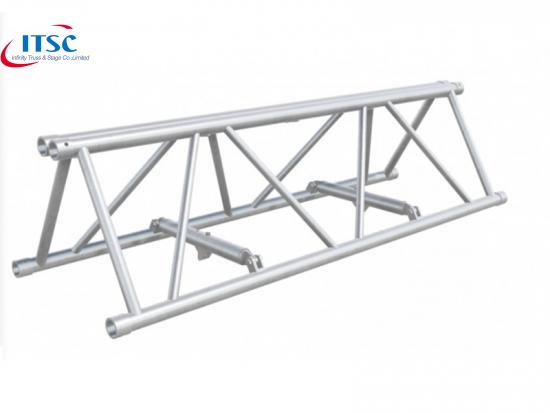

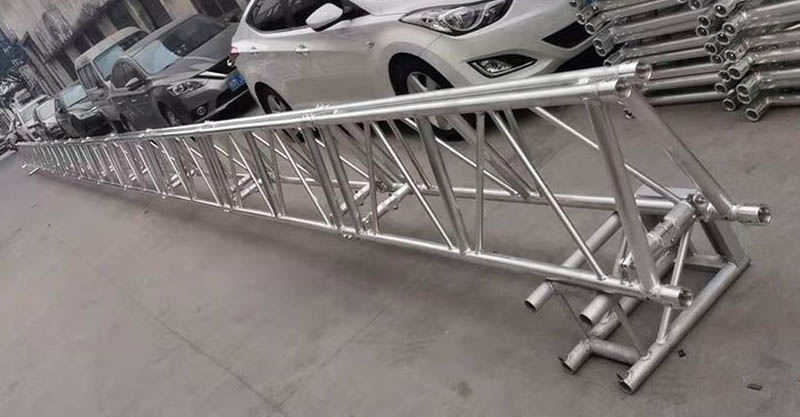

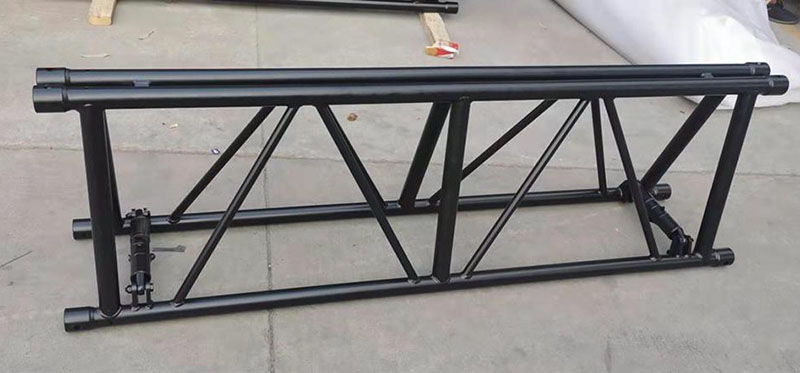

This ITSC-CSF4060 Folding Truss is constructed with main tube 50x3mm,and diagonals 30x2mm. It is adapted for construction in one level. ITStruss offers a series of ITSC-CSF4060 truss element for complete Collapsble truss roof structures. By folding the truss, it is possible to transport it in a simple way, but it is not avaiable in curved or circular sections.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding .
- High loading capacity.
Specification:
Item | 400x600mm Aluminium folding truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50 x 3 mm |
Sub-Main tube | 30 x 2 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 8 kg |
100 cm | 12 kg |
150 cm | 19 kg |
200cm | 23 |
250 cm | 27.50 kg |
300 cm | 40 kg |
Other length can be custom on request.
Application:
This Folding Event Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
