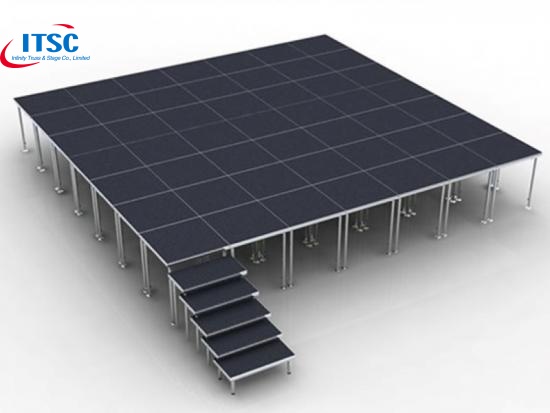

4x4 Aluminium Stage Platform System for Event Oragniser:
This Stage Platform System is configurated with 7x7pcs 4x4 aluminium stage platforms. It is developed from 1x1m quicklock stage platform, and height adjustable from0.6-1m, 0.8-1.2m, 1-1.4m,ect. Other height can be also customized. This stage system features much quick to install and save place when installing.
Features:
- Inside reinforcement corner.
- It can absorb the horizontal forces resulting from wind forces on the roof.
- Much quick Easy setup without any tools.
- Maximum load 750kg/m2 and 10% horizontal load are available.
Specification:
Item | 56x28ftStage Platform Systems for Event |
Stage decks | 4x4ft aluminium Quicklock stages (Custom) |
Topping | 18mm thick birch tree fiber plywood board covered with a smooth phenolic anti-humidity layer, waterproof and anti-slip |
Selfweight | Approx.1372 kg |
Transportation volume | Approx.13m3 |
Capacity | Approx. 750kg/m2 |
HS code |
7610900000 |
