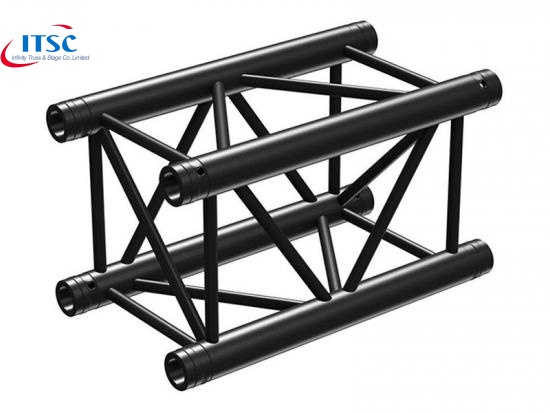

16 Aluminium Light Duty Portable Box Truss For Decoration:
16x16 Aluminium Spigot Box Truss is constructed with main tubes 2" OD x 1/8", and diagonals are 1" OD x 1/8", and it is conical coupler connected.
Its standard lengths can are usually 1.65', 3.28', 4.92', 6.56', 8.20', 10' ect. Other special length can be custom on request as well.
It is usualy equipped with other Black Ladder Truss, Black Triangle Truss, and Black Box Truss Corners to construct a whole Black Truss Roof.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 16"x16" Black Box Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 2" OD x 1/8 |
Sub-main tubes | 1" OD x 1/8" |
Braces | 1" OD x 1/8" |
Connection type | Conical coupler connector |
Length and Weight:
Length | Weight |
1.65' | 5.38 kg |
3.28' | 8.85 kg |
4.92' | 12.22 kg |
6.56' | 15.60kg |
8.20' | 18.97 kg |
10' | 22.10 kg |
Other length can be custom on request.
Application:

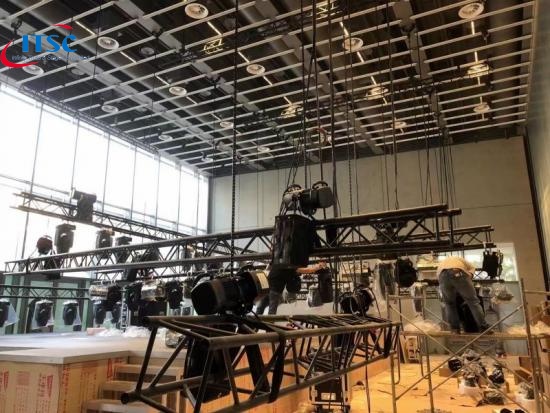

This Black Grid Box Truss Bridge is widely used for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
