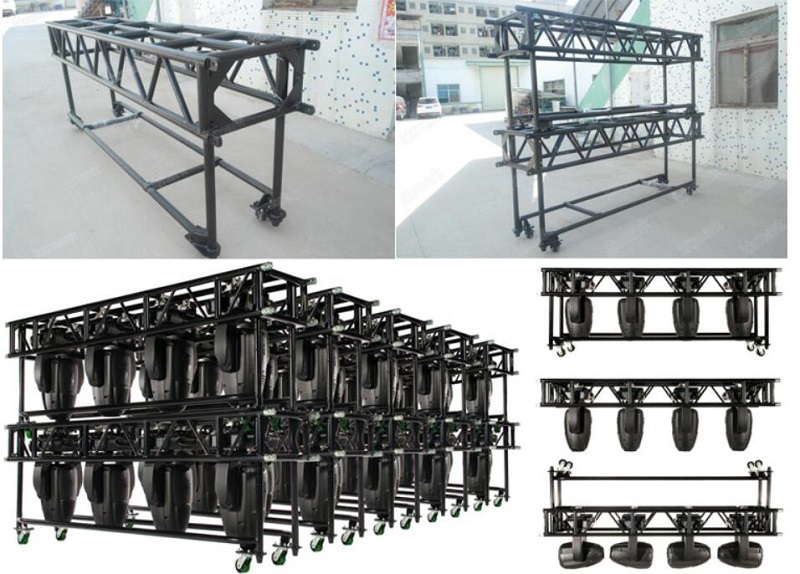

Black Pre Rig Truss with wheels to pre rigged lighting fixtures for venuess:
This Black Pre- Rig Truss is constructed with trusses and wheels to for Touring application. There are no braces on the underside, and allows your moving heads or other lighting fixtures to be being Pre Rigging inside the trusses. It reduces the trucking space and ensures faster and moe efficient lighting set up at the event venues.
With wheels under the trusses, it is easy to storage and transport the whole lighting truss and fixtures.
Features:
- Pre-Rigged lighting inside the trusses before moving to revenues.
- Delicated" fork system available in 90° Fixed, 90° Steps Rotating or 360° Continuous Rotation.
- Natural and any custom colour available on request.
- TUV/SGS certificates.
- Easy to move and save trucking space.
- Powder coated to be black and good effect to hightlight the lighting.
Specification:
| Items | 2.44m(8ft) Powder coated back Pre Rig Truss |
| Material | En AW 6082-T6 |
| Main tube | 50x4mm |
| Braces | 50x3mm/ 25x3mm |
| Coupling systems | Rotatable pin/ fork |
| Self-weight | 70.8kg |
| Max. span | 20m |
| Dimentions | 2440 x 610mm |
| Other fixed length available | 1.22m (4ft), 2.44m (8ft), 3m (10ft), other custom length available |
Loading capacity:
| Span(m)/ Top centre chord loading | UDL(kg/m) |
| 4 | 412 |
| 5 | 411 |
| 6 | 411 |
| 7 | 361 |
| 8 | 275 |
| 9 | 214 |
| 10 | 171 |
| 11 | 138 |
| 12 | 114 |
| 13 | 94 |
| 14 | 80 |
| 15 | 67 |
| 16 | 57 |
| 17 | 49 |
| 18 | 42 |
| 19 | 36 |
| 20 | 31 |
| 21 | 27 |
| 22 | 23 |
| 23 | 20 |
| 24 | 17 |
