Speaker Truss Support
9 M Speaker Truss Towers Support Spigot 1000 kg Capacity
Dec 20 , 2019

How to Fly 1000 kg Line Array Speakers at 9 M Support?


This Speaker Truss Towers Support with spigot connection has a loading capacity of 1000 kg and 9 m Maximum lifting height.

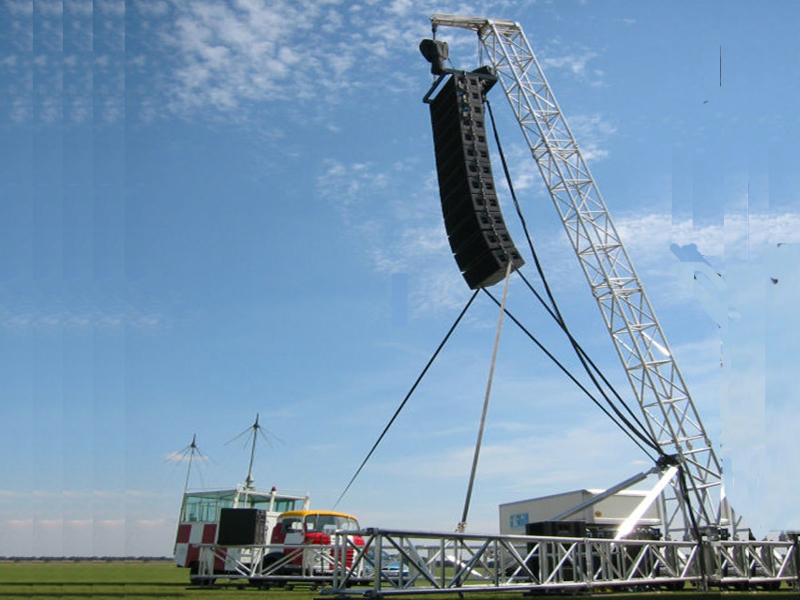

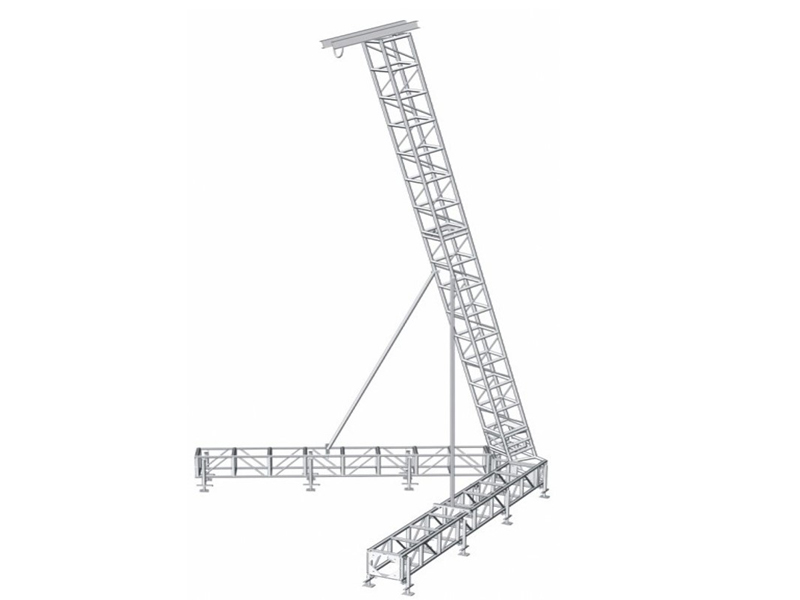

This Medium-Duty Speaker Truss Tower has a loading capacity of 1000 kg and a maximum lifting height of 9 m. The tower is based on ITSC-CS 39 truss with stabilizers of ITSC-CS 39. It has a self-weight of 300 kg. The legs of V-shaped base can be leveled by means of adjustable feet jacks, which are attached to the side of legs.

After the base is placed, the pillar can be built and erected using the hinges on the base corner. The pillar should be stable by means of the braces, which fix to the legs. After the system is leveled and ballast is applied, the load can be hoisted in position.

Specification:

Pillars ITSC-CS 39
Legs basement ITSC- CS 39
Stabilizers ITSC- CS 39
Max . overall height 9.3 m
Max . Lifting height 9 m
Max loading capacity 1000 kg (2200 lbs)
Max surface load front 5 m 2
Max surface  load side 2.5  m 2
Max. wind speed 20.7 kg / s
System weight 400 kg
Transportation volume

Approx. 8 m3

Application:

Its relatively small dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.

Installation steps:
