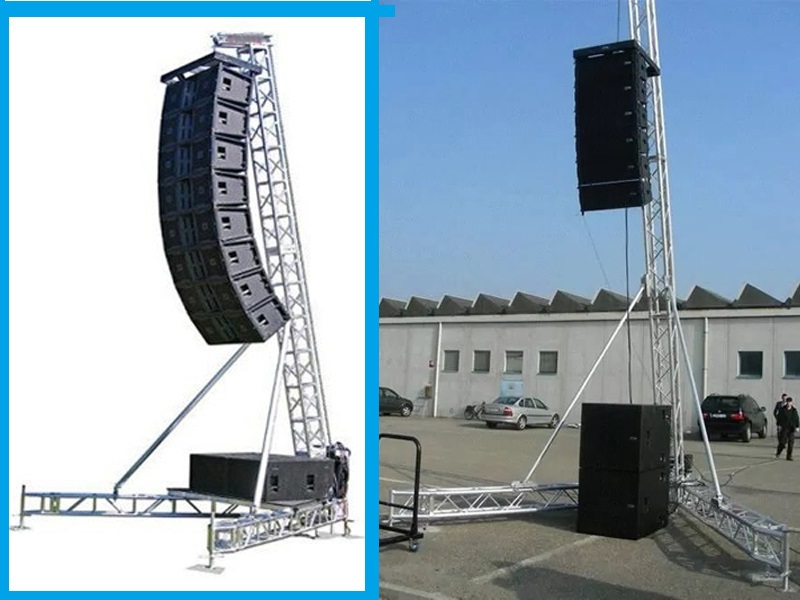

6 M Speaker Truss Towers Support Spigot 800 kg Capacity:

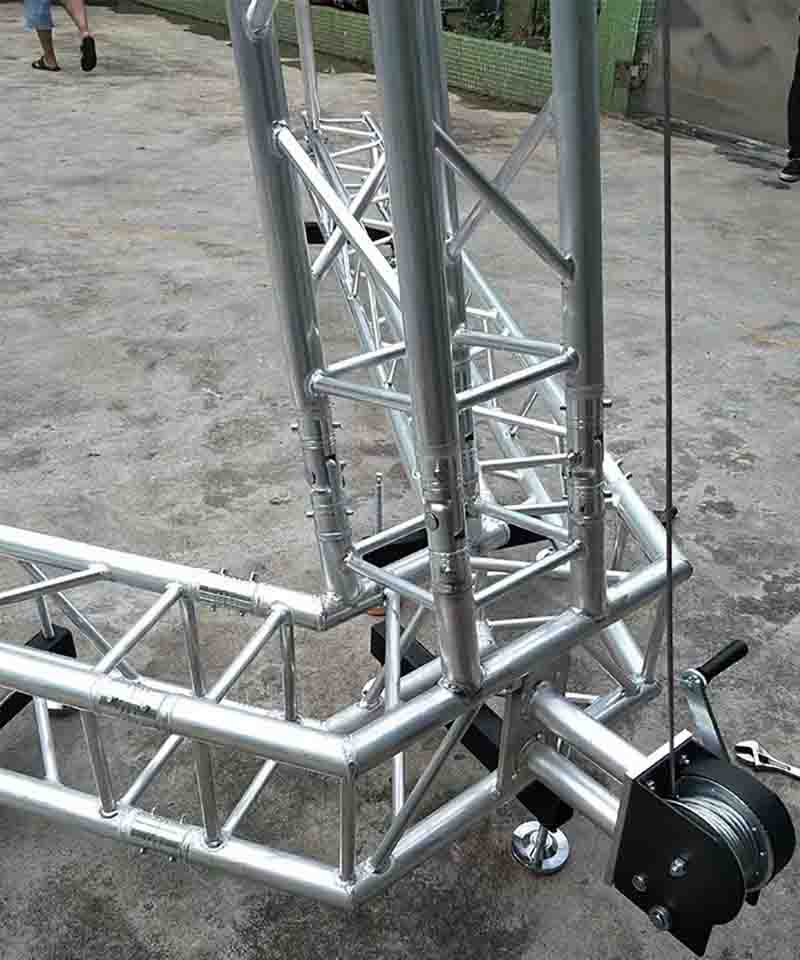

This light-duty Speaker Truss Tower has a loading capacity of 800 kg and a maximum lifting height of 6 m. The tower is based on ITSC-CS 29 truss with stabilizers of ITSC-CS 29. It has a self-weight of 260 kg. The legs of V-shaped base can be leveled by means of adjustable feet jacks, which are attached to the side of legs.

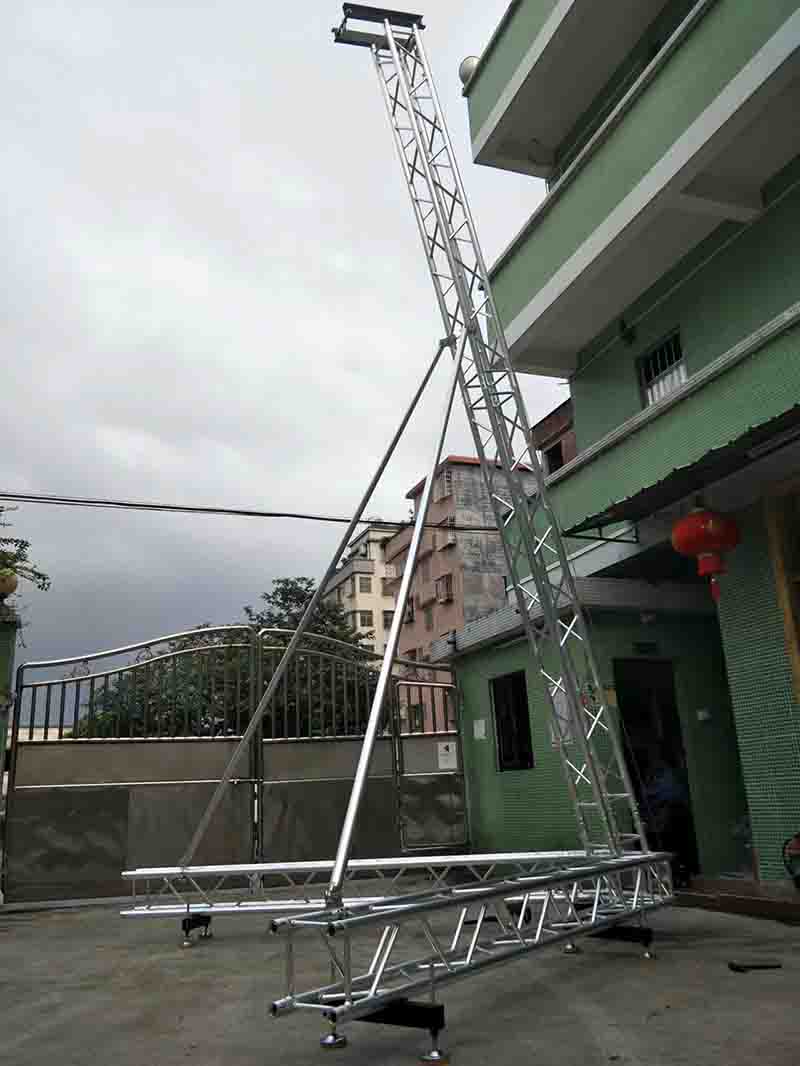

After the base is placed, the pillar can be built and erected using the hinges on the base corner. The pillar should be stable by means of the braces, which fix to the legs. After the system is leveled and ballast is applied, the load can be hoisted in position.
Specification:
Pillars | ITSC-CS 29 |
Legs basement | ITSC-CS 29 |
Stabilizers | ITSC- CS 29 |
Max . overall height | 6.3 m |
Max . Lifting height | 6 m |
Max loading capacity | 800 kg (1760 lbs) |
Max surface load front | 2.5 m 2 |
Max surface load side | 1.25 m 2 |
Max. wind speed | 20.7 kg / s |
System weight | 260 kg |
Transportation volume |
Approx. 8 m3 |
Application:
Its relatively small dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.

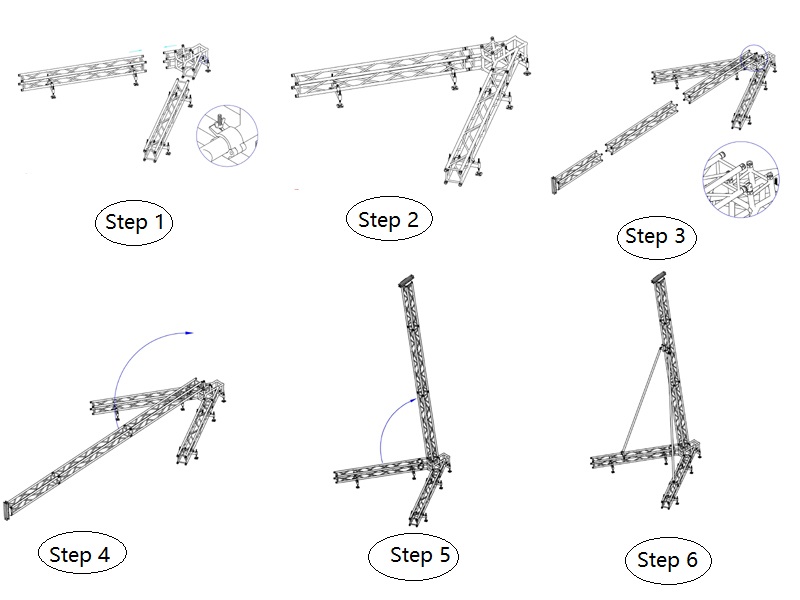

Installation steps:
