Do you plan to buy A Ninja Warrior Obstable Truss Structures for gym?
Nowadays, the Ninja Warrior Obstable Courses for gym popular. And if you want to Buy The Truss Structure, please come to ITSCtruss and we are professional to design and manufacture the right structure for your gym.

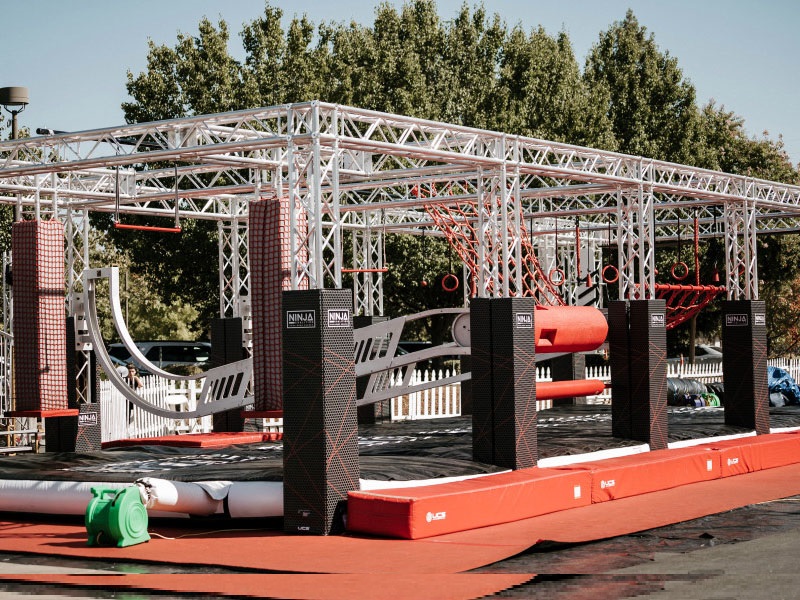

8x4x4m Truss Structure:
All the Trusses segments are ITSC-CS29, 290x290mm square trusses with main tubes 50x3mm, and diagonals 20x2mm. Below is the loading capacity table:
Truss segment loading table:
|
Span(m) |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
|
Centre Point load |
1740 |
1171 |
771 |
568 |
444 |
359 |
297 |
248 |
|
Deflection(mm) |
3 |
12 |
28 |
50 |
79 |
115 |
157 |
207 |
|
Two points load（kg) |
913 |
852 |
578 |
426 |
333 |
269 |
222 |
186 |
|
Deflection（mm） |
4 |
15 |
36 |
64 |
100 |
143 |
195 |
254 |
|
Uniformly distributed load(kg) |
858.9 |
426 |
257 |
142 |
89 |
60 |
42 |
31 |
|
Total load weight(kg) |
1717.6 |
1704 |
1542 |
1136 |
890 |
720 |
588 |
496 |
|
Deflection(mm) |
2.8 |
11 |
35 |
62 |
97 |
140 |
191 |
249 |
Truss Structure data:
Material: 6061-T6
Dimension:10x4x4m
Truss segments: ITC-CS29
Seifweight : Approx.610kg
Transparent volume: Approx.8m3
Total Capacity: Approx. 21000kg
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
