Ground Support Circular Truss Roof System
Aug 02 , 2020


Brief Introduciton:

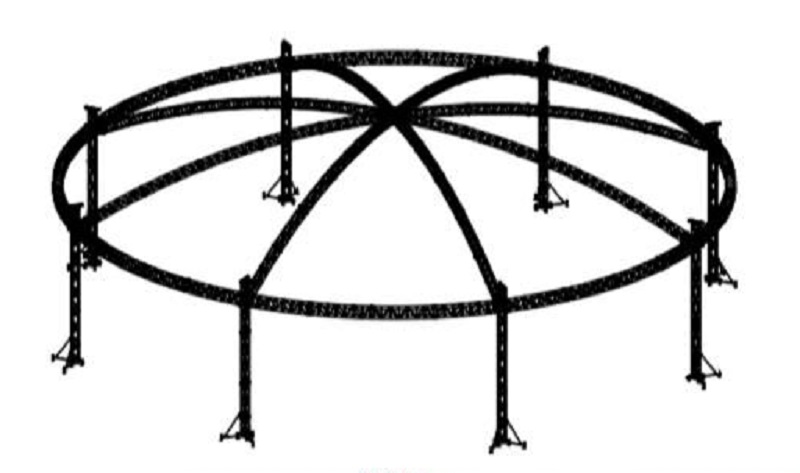

This Ground Support Circular Truss Roof System is custom by our clients from Argetina for goverment project. This Aluminium Lighitng Rig is configurated with 500x600mm spigot truss as Circular Truss Beam, and Arc Truss 400x500mm as the roofing. All the pillars are with 400x400mm Box Trussing together with Chain Hoists.





Specification:

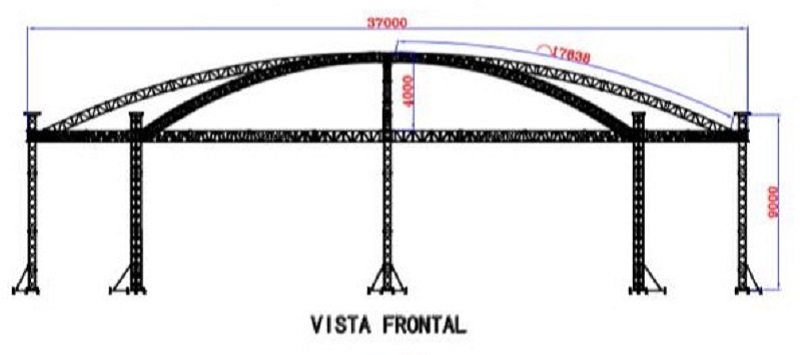

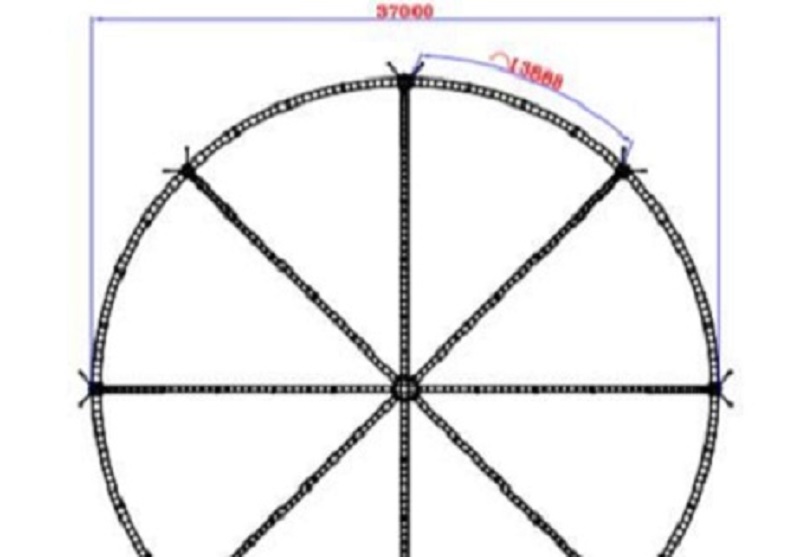

Dimension 37m Dia x 9m H
Main rigging 500x600mm Circular box trussing
Pillars 400x400mm box truss x 8 towers
Rigging 8pcs motor hoists
Transportation volume 120m3
Selfweight 5720kg
Max. Windspeed 27.5m/s
