32 Foot Curved Metal Roof Trusses for Sale in Trinidad and Tobago
Nov 28 , 2019

Flexible Dimensions,  Economic Cost!


32 x 32 Foot Curved Metal Roof is customized especially for rental business for its flexible dimensions and economic costs but creative design.  Just have our standard Square Truss ITSC-CS39 in stock, and customized special corners, then you can create this wonderful Curved Roof Structure, and the dimensions can be changeable in different situation just with other shorter Truss Beams, saving a lot of money for your rental business!.

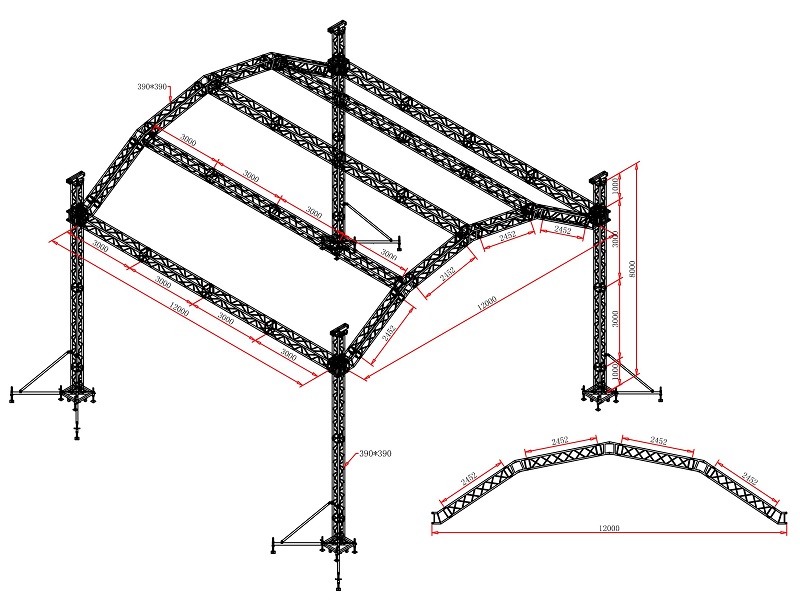

Specification:


Towers 390x390mm square trusses towers x 4sets
Main grid ITSC-CS39
Dimensions
32x32ft, 40x30ft, 20x20ft, 40x40ft, 60x40ft, 80x60ft(other dimensions customized}
Loading capacity 32x32ft approx. 4000kg
Total weight Approx.2200kg
Transporation volume Aprox. 22m3
MMax. wind speed 28.4m/s

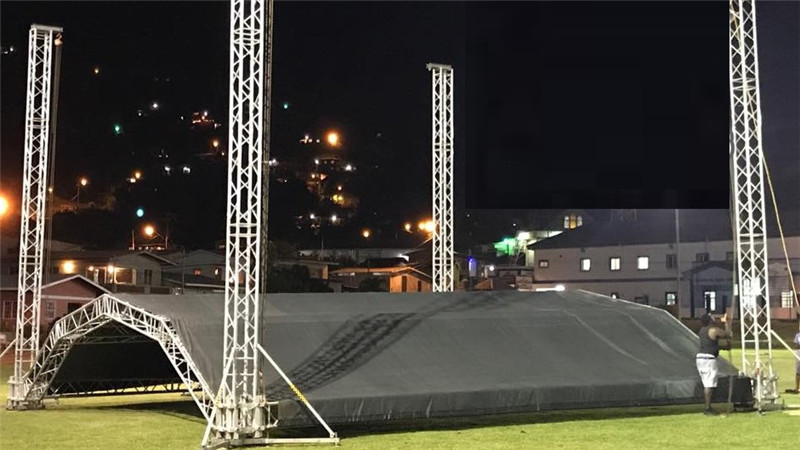

We manufactured this Roof Structure for both our clients in USA and Trinidad and Tobago Markets for hire.


roof trusses


The whole structure is Conical Coupling Connection System and it will be much quick to install the whole systems.



You mean it, we create it!

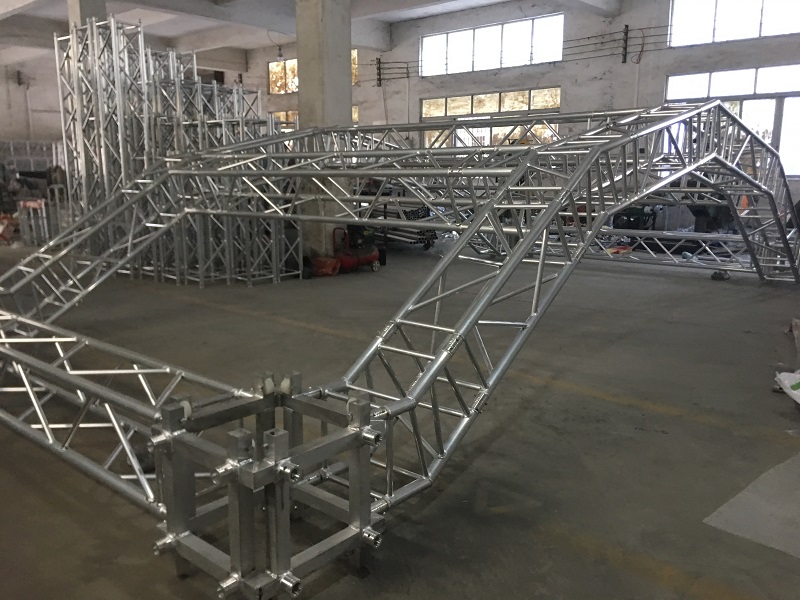

The Roof is tested after production.
