China Aluminum Long Multi Silver Bolt Triangular Shape Truss:

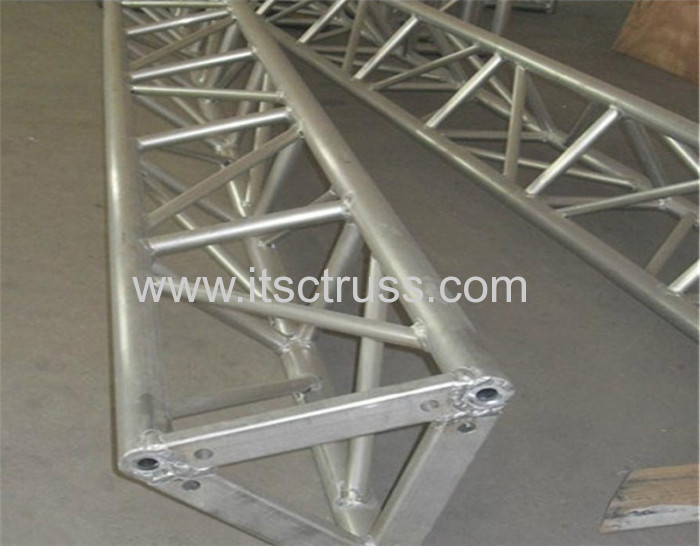

ITSC-BT30 Aluminum Triangle Truss is lightweight but strong capacity. It can be customized to be curved and circular on request. When combined with its related blocks and different corners, it is mostly applied inTruss Roof Systems Structures.
Features:
- Lightweight and heavy capacity.
- lower volume to transport.
- And requirement free design available.
- Powder coating or anodizing to be any color on request.
- Factory price only.
Specification:
Item | 300x300mm bolted plated triangular truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Dimensions | 300 x 300 mm |
Types | Triangular |
Main tubes | 50 x 3 mm |
Braces | 30 x 2 mm |
Connection type | Bolt |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 6.37 kg |
100 cm | 7.3 kg |
150 cm | 8.25 kg |
200 cm | 9.2 kg |
250 cm | 10.1 kg |
300 cm | 11 kg |
Other length can be custom on request.
Application:
This Aluminium Tri truss is commonly applied in constructing all kinds oftrusses roof systemsin events.
Problems:
It will fail to install the Truss Ground Support due to its triangle shape.
