Aluminum Truss Rooftop 8 Towers Design Heavy Duty Pyramid Roofing

Model: ITSC-R161209
Place of Origin: Guangdong,China (Mainland)
Brand Name: ITSCtruss
Materials: Aluminum alloy 6082/6061
Certificates: TUV/SGS Aproved
Company type: manufacturer
Main products: Aluminum truss, Rund truss, lighting truss, aluminum stages, arena stands, aluminum truss tent,Aluminum parabolic hut
Application: Rental business,concerts events, wedding parties, exhibition display, advertising, indoor and outdoor decoration events
Options: flat roof truss,gable roof truss, dome roof truss, arc roof truss, mobile stages,arena stands,goalposts, soundwings
Our dream: Strive to be one of the leading manufacturers of aluminum trusses rigging and mobile stages performance equipments
Cost: factory price only, no dealer
Our beliefs: Service our customer to achieve their goals, value quality and innovation, be trustworthy and responsible
Warranty: 2 years


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:30000.0 USDProduction Capacity:100sets/month
Trade Term:FOB,CIF,EXWPacking:Carton / Air bulble
Payment Terms:Paypal, L/C, T/T, WU, Money GramDelivery Date:5 working days
Min. Order:1 Set/Sets
Means of Transport:Ocean, Land


ITSC-R161209 AluminumTruss Rooftop is  standard available in 14x12m, 16x12m, 18x14m and 20x14m. The beams can be 520x520mm,ect and pillars can 390x390mm or 400x400mm truss segments.  PA wings are available.

This is heavy duty design for medium shows,and its capacity can be 10000kg + 2x 1000kg(PA Soundwings)


Dimension16x12x9m / 52x40x30ft

Main grid

390x390mm Quatro Trussing


390x390mm  Quatro Trussing

Transport volumeApprox. 45cbm
WeightApproxi. 6000kg
Windspeed28.5 s/m
Roofing PriceUSD30, 000. 00
Stage PriceUSD26, 000. 00

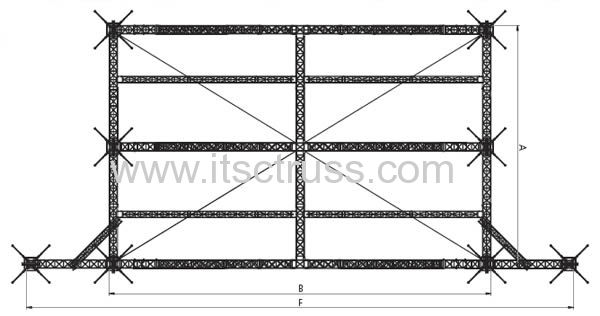

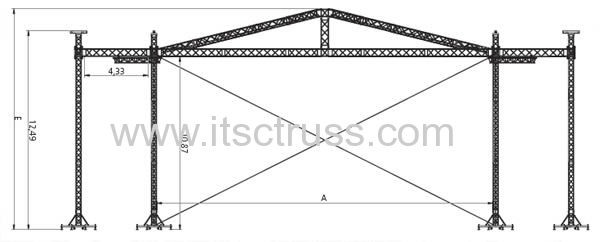

 Roof Truss Dimensions20x14m18x14m16x12m14x12m
A: Inside Roof21x13,7m19x13,7m17x11,7m15x11,7m
B: Outside Roof21,7x13,7m19,7x13,7m17,7x11,7m15,7x11,7m
C: Clearance10,87m10,87m10,87m10,87m
D: Tower height12,49m12,49m12,49m12,49m
E: Rooftop height14,12m13,87m13,37m13,12m
F: Outside incl. PA31,07m29,07m27,07m25,07m
G: PA-Wing4,00m4,00m4,00m4,00m

All the trusses are tested before deliveried.

The hot sale truses optoins available:

Order process:

A quick look into order:

A detailed look into order:

Negotiate   truss





Delivery   Time

Terms of   Payment

Claim for   Compensation


Sign a   contract

Order   goods and stamp

Transfer   payment

Cash, T/T,   Western union, Money gram, L/C, ect

Prepare   production

PD study   the specification and start to arrange the production,

Check and   Testing

QC   checking and testing the quality


Generally   pack with bubble air or carton according to negotiation

Prepare   documents

Calculate   the weight and volume for clearance documents: packing list,   invoice,   B/L, ect. And other special documents for clearance in different     countries.


Arrange   container and load and ready to delivery. Usually takes   12-45days   depending on different areas.


Buy the   insurance according to the goods price

Bill of   Lading

Will   deliver the B/L to clients by door to door service

A quick look into production:

A detailed look into production:

Step 1

Material   Ready

Step 2

Material   Cutting

Step 3

Board   Cutting

Step 4


Step 5


Step 6




Step 8


Step 9

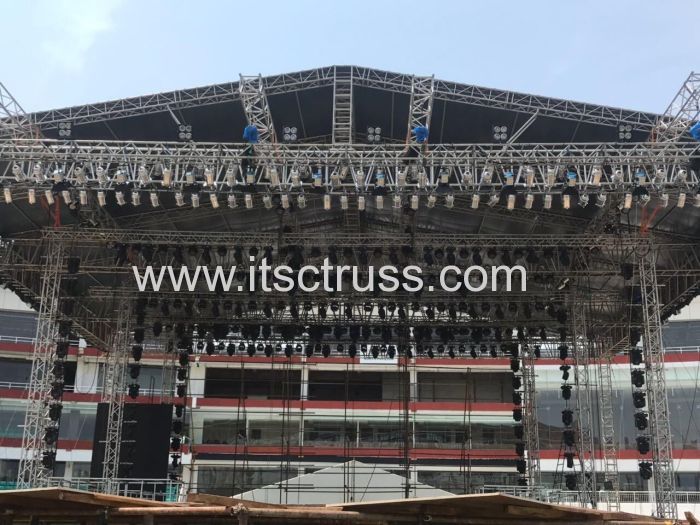

If you need to hang more stage lighting in the middle, you can add more cross beams trusses rigging in the middle to hightlight the stages.

Iron scaffolding trusses can be also installed at the back of the Rooftop as backdrop. and many stage lighting clamps can be attached to the trusses rigging to hang the lighting futures.

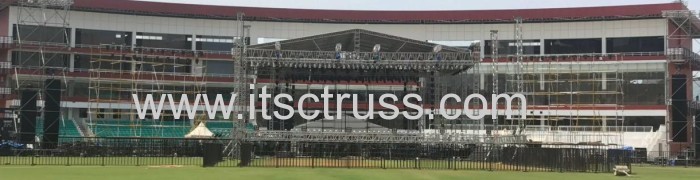

The whole Rooftop Truss system are installed with mobile stages on the grass with Barricades for audience in outdoor concerts.

Category: Pyramid roof truss system

Related Category: Flat roof truss system  Custom roof truss system
