50X290mm Ladder truss with Spigot Connection

Model: ITSC-CL29
Place of Origin: Guangdong,China (Mainland)
Brand Name: ITSCtruss
Materials: Aluminum alloy 6082/6061
Certificates: TUV/SGS Aproved
Company type: manufacturer
Main products: Aluminum truss, Rund truss, lighting truss, aluminum stages, arena stands, aluminum truss tent,Aluminum parabolic hut
Application: Rental business,concerts events, wedding parties, exhibition display, advertising, indoor and outdoor decoration events
Options: flat roof truss,gable roof truss, dome roof truss, arc roof truss, mobile stages,arena stands,goalposts, soundwings
Our dream: Strive to be one of the leading manufacturers of aluminum trusses rigging and mobile stages performance equipments
Cost: factory price only, no dealer
Our beliefs: Service our customer to achieve their goals, value quality and innovation, be trustworthy and responsible
Marketing: Global

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:30.0 USDProduction Capacity:100sets/month
Trade Term:FOB,CIF,EXWPacking:Carton / Air bulble
Payment Terms:L/C, T/T, WU, Money GramDelivery Date:5 working days
Min. Order:1 Meter
Means of Transport:Ocean, Land

Brief introduction:

The 50x290mm  ladder truss is one of the 290mm series. It consists main tube 50x2mm, and deputy tbue 25x2mm, diagonal is 20x2mm. It can applied for both small and large events application. With the Conical Coupler or Spigot Connection, it is quick and easy to asssemble in Aluminum Truss and Stages System .

Specification:

Dimension50x290mm Duo

Main tube

Φ50x2mm

Deputy  tube

Φ25x2mm

Diagonals

Φ20x2mm

Common lengths and weight:

Truss type

0.5 m

1 m

1.5 m

2 m

2.5 m

3 m

4 m

5 m

Ladder

1.5 kg

3.35 kg

5 kg

6 kg

7.5 kg

9 kg

12 kg

15 kg

Triangular

2.25 kg

4.5 kg

6.9 kg

9 kg

11.25 kg

13.5 kg

18 kg

22.5 kg

Square

2.95 kg

5.9 kg

8.9 kg

11.8 kg

14.75 kg

17.7 kg

23.6 kg

29.5 kg

Loading capacity:

Span(m)2m3m4m5m6m7m8m9m10m
UDL( kg/m) 567.0377.0250.5159.2109.779.860.447.437.6
CPL(kg) 708.0586.2501.0398.1329.0279.2241.547.4187.8

All the trusses are tested before deliveried.

Functions:

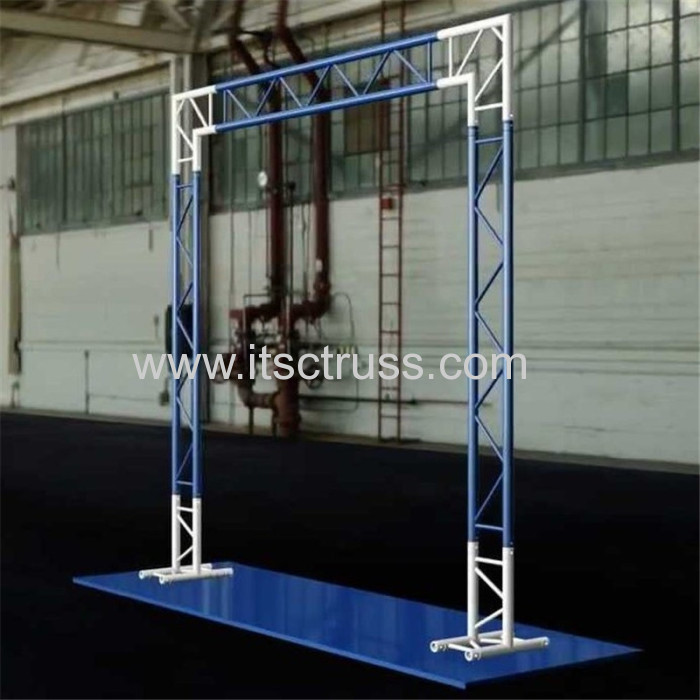

The Ladder trusses can be constructed into Mobile DJ stands in Gymnasium with colourful treatments.

Category: Ladder truss
