200 x 200 mm Square truss with Spigoted Connection

Model: ITSC-CS20
Place of Origin: Guangdong,China (Mainland)
Brand Name: ITSCtruss
Materials: Aluminum 6061/ 6082
Colour: Silver
Connection: Pin / Spigoted
Size: 200mm x 200mm
Weight: 3kg / m
Main tube: 30 mm x 2mm
Bracing: 12mm x 2mm
OEM/ODM: Acceptable
Original place: Guangzhou,China
Market: Global

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:25.0 USDProduction Capacity:10000/month
Trade Term:FOB,CIF,EXWPacking:Air Bubble
Payment Terms:Paypal, L/C, T/T, Money GramDelivery Date:3 working days
Min. Order:1 Meter
Means of Transport:Ocean, Air, Land

About the 200x200 Tiny Square lighting truss:

Square Mini  truss  ITSC-CS20 is with main tube 30x2mm and diagonals 12x2m. It is very  light in weight, and light duty with a mainly decorative function. And it is with spigoted connection which is quick to install and dismantle. Compact construction, Optimum strength and high-tech appearance make this trusses an appropriate decorative element with numerous applications.  Its small size can save a lot of your space.
Specification

Item

200x200mm pin truss section

Material

Aluminum 6061/6082

Main tube

30x2mm

Connection

Spigoted

Size

200x200mm

Application

Decorative , small events, backdrops, posts, advertising, displays, screen frames, truss furniture, stool and tables.ect.

Loading capacity :

Span

1m

2m

3m

4m

5m

6m

7m

8m

9m

UDL( kg/m)

610.0

300.0

190.0

100.0

65.0

400.0

28.0

20.0

16.0

CPL(kg)

610.0

450.0

280.0

200.0

169.0

130.0

102.0

89.0

76.0

 Applications:

Decorative functions, Advertising posts,  Exhibition stands, Car shows, Backdrops, Advertising, Furniture supports.

Options:

1.) Truss sizes vary according to its application, but it can be divided into by its capacity: Minimum duty trusses, Medium duty trusses, and Heavy duty trusses. There are bolt trusses and conical coupler trusses according to its connection way.
2.) Minimum duty truss include: 200x200 mm, 290x290mm, 300 x 300 mm. They are mostly applied in decoration, exhibition displays, small events roofing, outdoor wedding party, hanging stage lighting and sound speakers, constructing roofing, backdrops, or modular tents.
3.)  Medium duty truss include: 390x390mm, 400x400mm, 450x450mm, 400x600mm, 520 x520 mm, 500x600mm. Applied in medium performances, some of them are also used as pillars and roofing in big roof.
4.) Heavy duty size include: 520x760mm, 600x760mm, 1100x600mm, 1100x700mm, applied in super concert events or large span roofing or Gymnasium.

Trusses types for entertainment rigging:

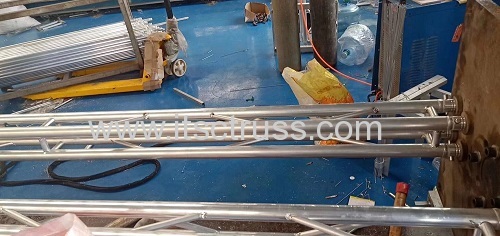

Aluminum Trusses fabrication in factory:
